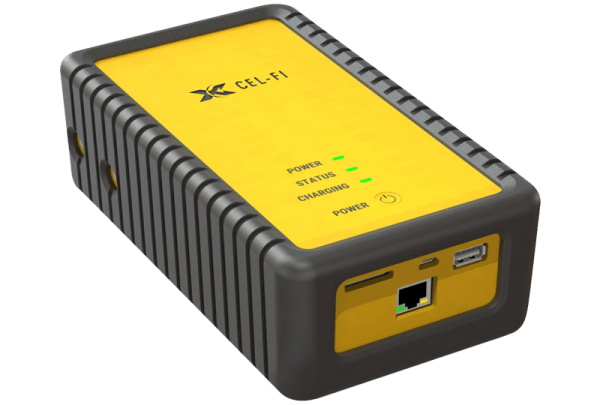

Cel-Fi Compass - RF Site Surveying and Installation Tool
The Cel-Fi COMPASS is an RF site utility that enables installers and integrators to install and optimize Cel-Fi equipment. This will include Cel-Fi public safety boosters and the Cel-Fi QUATRA that previously required an internet connection to be commissioned and managed.
Key Features
- Handheld RF installation tool
- Cel-Fi WAVE PRO app is the user-interface (see details below)
- Deep 3G/4G LTE service scanner
- 698 – 2700 MHz
- Rugged rubberized exo-skeleton
- FDD/TDD Support
- Battery-powered
- SMA connectors

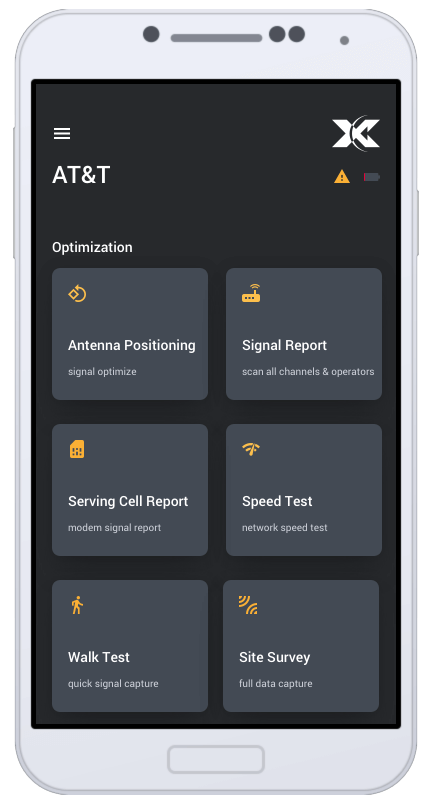

Cel-Fi WAVE PRO
The Cel-Fi COMPASS is controlled by the Cel-Fi WAVE PRO app via Bluetooth LE. The Cel-Fi COMPASS can also connect via Ethernet to the Cel-FI QUATRA Network Unit. The app is free to download from the iOS App Store and Android Play Store.
Installation Features (when connected to a Cel-Fi QUATRA):
Activate/Deactivate the system
Update software
Change Antenna Settings
Set the bands to relay
Change IP Settings
Optimization Features:
Antenna Position test (when connected to a Directional Antenna with the Cel-Fi Antenna Mount)
Full Signal Report (when connected to an Antenna)
Serving Cell Report (when connected to an Antenna)
Speed Test
Tech Specs
Configurations
Model: K03-100-100
Compliance
FCC
CE

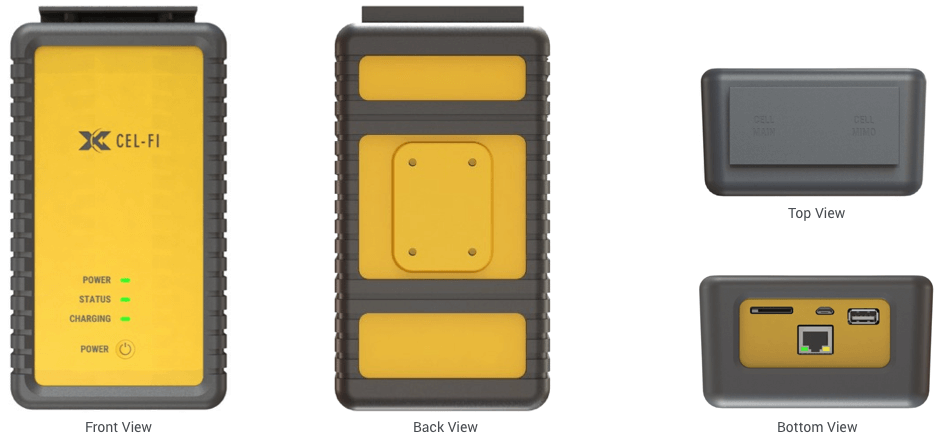

Dimensions
Height: 64mm
Width: 113mm
Length: 210mm
Hardware
Main Processor: Single Board Linux Computer
Battery Charger: Included
Rechargeable Battery: 8000 mAh, 3.7V
Interfaces
SIM Access: Yes
Charging: Micro USB
LAN Port: RJ45
Main Antenna: Reverse-polarity SMA-Female
MIMO Antenna: Reverse-polarity SMA-Female
Power Button: Yes
LED’s: Power and Modem
Accessories & Soft Case
Antenna adaptor: N-type Female to RP-SMA Male
Antenna adaptor: 4.3-10 Female to RP-SMA Male
Whip antenna: 600 MHz – 2.7 GHz
5V, 2A USB charger: Included
