Cel-Fi Prime - Indoor Smart Signal Booster for HSPA+ and LTE networks around the world

Improve 3G and 4G LTE cellular service, eliminate dead zones, and dropped calls with Cel-Fi PRIME. With 80 dB of gain, Cel-Fi PRIME will not only improve cellular coverage, but it will also reduce your cell phone’s power requirements and extend its battery life. PRIME offers plug-and-play cellular coverage for a room, storefront, kiosk, apartment or similar space, enabling clear and reliable connections within the coverage area – approximately 1,000 ft2 (100 m2). In an open space, the coverage bubble can be much larger. Cel-Fi PRIME uses Nextivity’s patent-pending electrically steerable antenna technology, addressing pilot pollution issues, and ensuring PRIME outperform the competition. Cel-Fi PRIME is CE-certified, and available wherever Bands 1 (2100 MHz) and Band 3 (1800 MHz) are used.

Key Features

• Cellular Signal Booster™
• Simple installation.
• Clean and compact industrial design.
• LED User Interface (UI).
• Integrated antennas.
• Auto-configured & Self-Contained.
• It may also be used where 5GHz channel space is restricted (Cel-Fi PRIME does not utilize a wireless link between Network and Coverage Units).
• Unlocked: Cell phones do not need to be registered with Cel-Fi PRIME to benefit.
• Peaceful coexistence with adjacent Cel-Fi systems.
• Remote software update capability.
• Support for Nextivity WAVE mobile & desktop applications.
• End-to-end cellular communication encryption without additional risk of vulnerability.
• Mounting bracket included.

Designed to fit in, everywhere

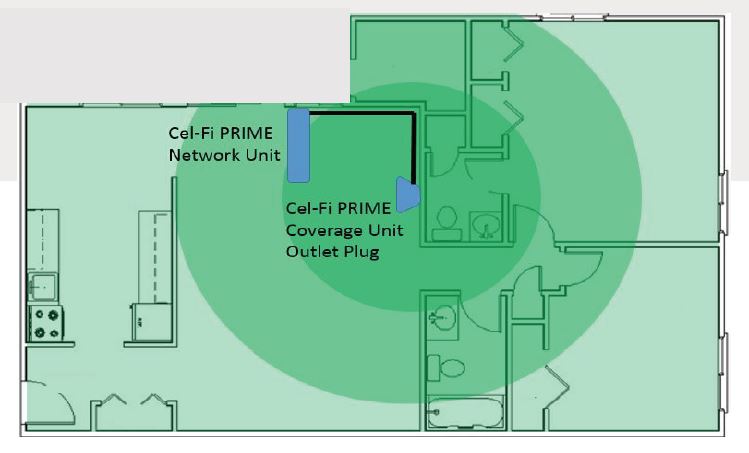

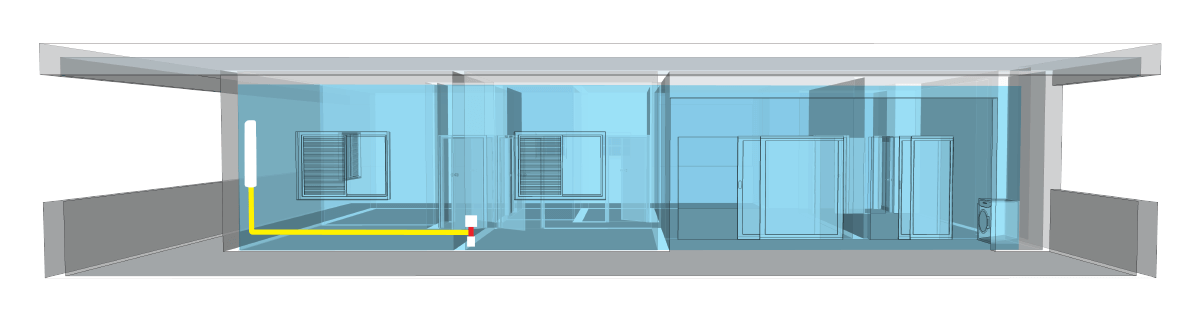

Sample Layouts


One Level

Tech Specs

Configurations
All systems are reconfigured to specific carriers

Band 1 or 1/3

Certifications

CE, FEE, RoHS, IC, EAC, R&TTE & EN

Mounting

The mounting system provided with multiple options for flexible placement.

Electrical & Environmental Requirements

12 VDC
-25 to 40 Degrees Celsius

Physical Specification

PRIME:
• 32.5 x 82 x 505mm (420g)
Power Supply:
• 73 x 117 x 45mm (130g)

Power Consumption

Full uplink:
• 30 Watts
Idle:
• <20 Watts

Have more questions about Cel-Fi by Nextivity Cellular Coverage products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
