Cel-Fi Pro - Indoor Smart Signal Booster for 3G, 4G and 4G LTE networks around the world
Indoor Smart Signal Booster for 3G, 4G and 4G LTE networks around the world. NEXTIVITY’S 3RD GENERATION Cel-Fi SYSTEM adds substantial capability over our previous versions. The Cel-Fi Pro is designed to dramatically improve voice and data coverage in up to four bands for 3G, 4G, and LTE for consumers while significantly improving network capacity. Good things do come in small packages: Now with LTE support, Cel-Fi is compatible with the highest data services application available. All-new patented echo cancellation algorithms enable Cel-Fi to offer even higher signal levels throughout the coverage area than before.
Key Features
- Fully wireless, plug-and-play quad-band architecture for supporting—WCDMA/HSPA+/LTE, with up to 100dB of system gain in each band simultaneously.
- Patented 2-unit, 3-hop system allows flexible placement for optimal coverage.
- A processor running advanced digital echo cancellation and channel select filtering algorithm.
- Software-based optimization of integrated antenna coverage pattern which maximizes system gain and provides improved coverage and signal quality.
- Automatic Gain Control (AGC) continuously monitors system path loss and transmit power to deliver a maximum gain.
- Intuitive LCD User Interface (UI) allows quick and easy installation by the end-user.
Under the Hood
Cel-Fi PRO improves 3G, 4G, and LTE cellular service by eliminating dead zones and dropped calls. With 100 dB of gain, Cel-Fi PRO will not only improve cellular service across four (4) concurrent bands, it will also reduce your cell phone’s power requirements and extend its battery life. Cel-Fi PRO covers up to 13,000 ft2 (1,200 m2) of indoor space per system. Cel-Fi PRO systems feature an LCD color interface, are fully self-contained and self-configuring, and require no external antennas or wiring. Simply plug it in to boost indoor cellular coverage.
Cel-Fi PRO is CE and FCC approved. It has been approved by numerous mobile operators and regulatory bodies and is shipping globally.
Cel-Fi PRO EXA variants feature an external antenna connector to enable the use of an external Donor antenna. A Cel-Fi PRO EXA with an external Donor antenna can thereby acquire an outside signal, allowing it to be used in applications where no signal is present indoors (i.e. cement, metal walls, etc.). This opens up new opportunities for using Cel-Fi PRO Smart Boosters when other solutions fail. Cel-Fi PRO EXA enables cellular coverage in hard to reach places by allowing the Cel-Fi Network Unit to be placed, where no service exists.

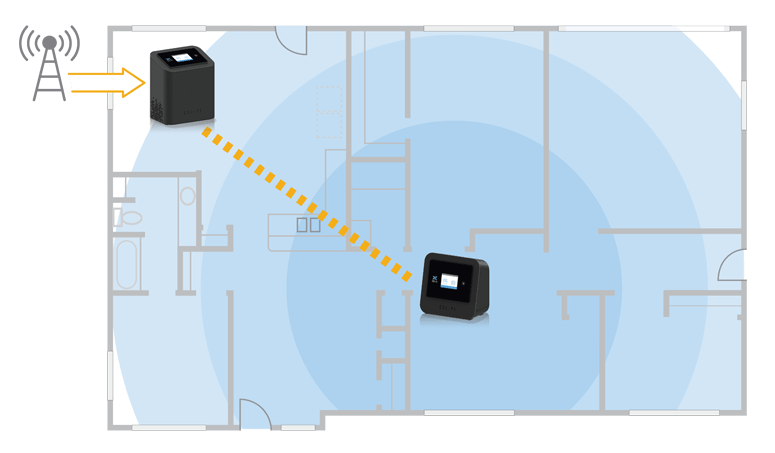

Move the CU further away from the NU to maximize coverage. The total coverage area equals twice the distance between the NU and the CU. The maximum distance is up to 100 dB path loss.
Get set up in 4 easy steps
| Step 1 | Step 2 | Step 3 | Step 4 |
| Find the best cellular signal | Place the Network Unit | Place the Coverage Unit | Use app to optimize setup |
 |
 |
 |
 |
| Use your phone to find the best cellular signal. Typically you will get the best signal near a window. | Place the Network Unit (NU) in the location where you get the best cellular signal. | Place the Coverage Unit (CU) in the location where you need improved coverage. | Using the Cel-Fi WAVE app, finish setup and activation. |
Sample Layouts
One Level
Two Level
Cel-Fi PRO X

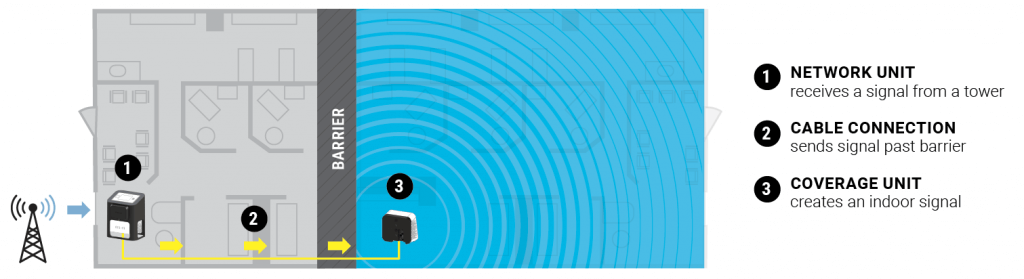

Cel-Fi PRO X is a cable adapter sleeve that allows the Cel-Fi PRO unit to link across greater distances or through (RF blocking) obstacles. The accessory works with any Cel-Fi PRO, in locations where the standard wireless UNII system link is challenged. The Cel-Fi PRO X connects the Cel-Fi PRO Network Unit to the Cel-Fi PRO Coverage Unit using a completely passively coupled sleeve, which uses the cable for communications.
Cel-Fi PRO X opens up new opportunities for using Cel-Fi PRO Smart Boosters, when other solutions fail. Cel-Fi PRO X enables cellular coverage to hard to reach places by allowing the Cel-Fi Coverage Unit to be placed much further from the Network Unit, or allowing the Units to connect when their normal RF link signals cannot penetrate through structures.
Tech Specs
Configurations
All systems are reconfigured to specific carriers
Bands 1/3, 1/7, 1/8, 1/3/7, 1/3/8, 1/3/7/8, 1/3/8/20, 1/7/8/20, 2/5, 2/4/5/12, 1/3/5/28, or 3/5/28
Certifications
CE, FEE, RoHS, IC, EAC, R&TTE & EN
Power Consumption
Full uplink:
• 30 Watts
Idle:
• <20 Watts
Electrical & Environmental Requirements
12 VDC
-25 to 60 Celsius
Physical Specification
Network Unit
• 179 x 155 x 110mm (540g)
Coverage Unit
• 160 x 164 x 70mm (450g)
Accessory Model Numbers
Wideband Directional Antenna:
A32-V24-100
Wideband Panel Antenna:
A52-V32-100
PRO X with 40 meters LMR-200:
590N030-407-10
PRO X without cabling:
590N030-006-10
Model Numbers
PRO Systems:
P34-0/3/5/28
P34-1/0/0/8
P34-1/0/7/0
P34-1/3/0/0
P34-1/3/0/8
P34-1/3/5/28
P34-1/3/7/0
P34-1/3/7/8
P34-1/3/8/20
P34-1/7/8/20
P34-2/0/5/0
P34-2/4/5/12
PRO with EXA:
P34-0/3/5/28_EXA
P34-1/0/0/8_EXA
P34-1/0/7/0_EXA
P34-1/3/0/0_EXA
P34-1/3/0/8_EXA
P34-1/3/5/28_EXA
P34-1/3/7/0_EXA
P34-1/3/7/8_EXA
P34-1/3/8/20_EXA
P34-1/7/8/20_EXA
P34-2/0/5/0_EXA
P34-2/4/5/12_EXA
P34-2/5/0/66_EXA
