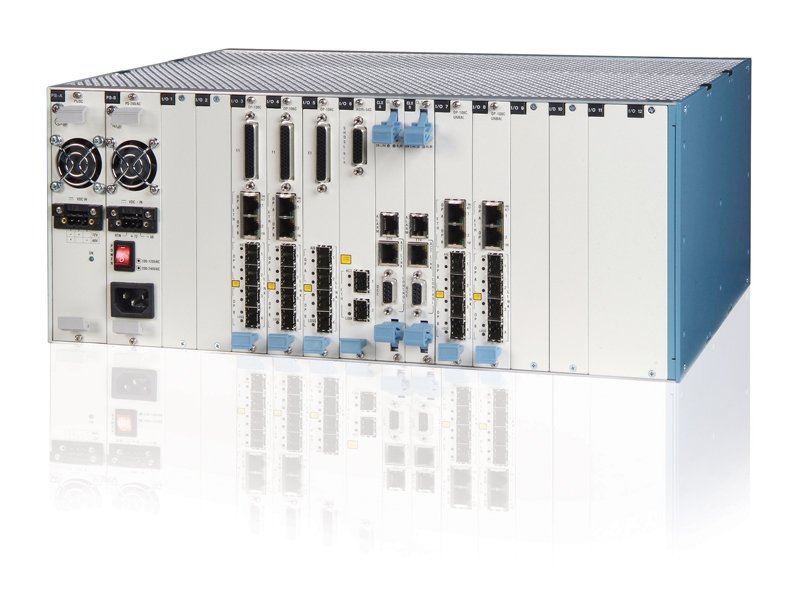

LRS-102 - 12-Slot Transparent Rack with SNMP Management
The LRS-102 is a cost-effective, modular central rack solution for RAD’s Optimux fiber multiplexers or ASMi-54 SHDSL.bis products, extending E1/T1s, data and Ethernet traffic up to 120 km (75 miles) over fiber optic links, and TDM and Ethernet over SHDSL.bis with rates up to 22.8 Mbps over copper.
High port density saves on colocation costs

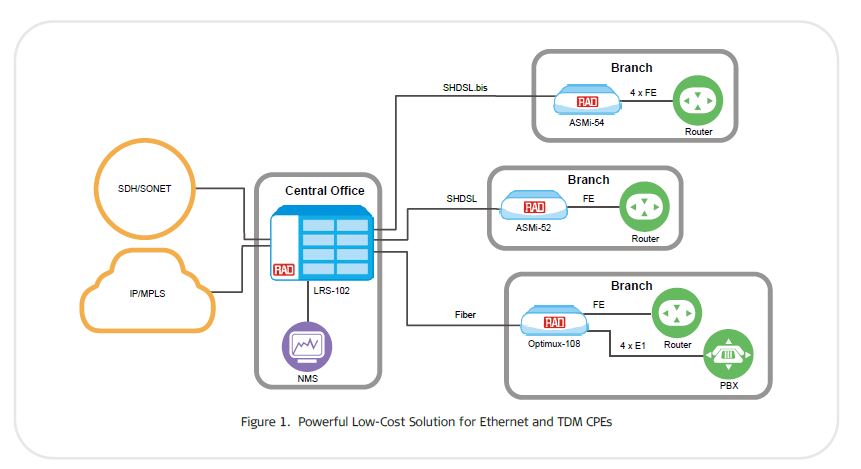

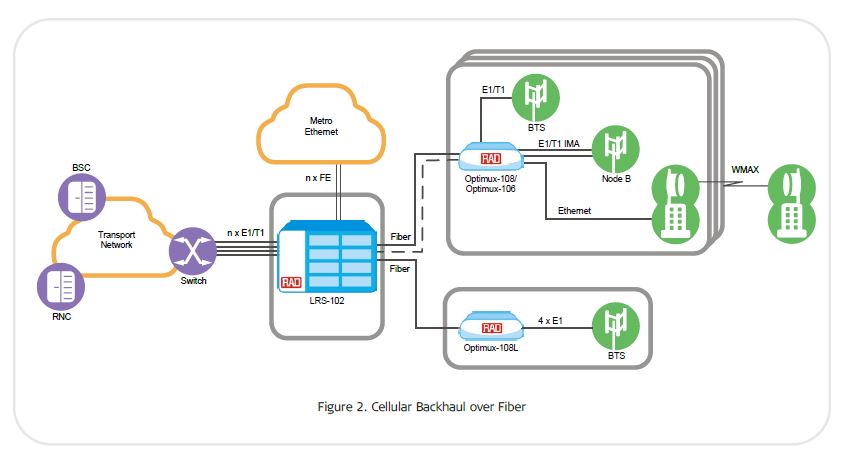

A higher port density chassis occupying one-third of the space of the equivalent number of standalone units, the LRS-102 central solution saves on colocation costs and avoids multiple IP addresses in the network, resulting in a lower price per port. Typical LRS-102 applications include campus service sharing, Ethernet, data and voice range extension, cellular backhaul extension, video conferencing, and surveillance camera connectivity.
Key Features:
- Up to 24 Ethernet ports and up to 192 E1/T1 links over fiber and copper
- Low collocation costs, space and power
- Single IP address
- ASCII terminal or Telnet management
- RADview SNMP management for convenient and low-cost maintenance on PC or Unix (HPOV) platforms
Solutions:
