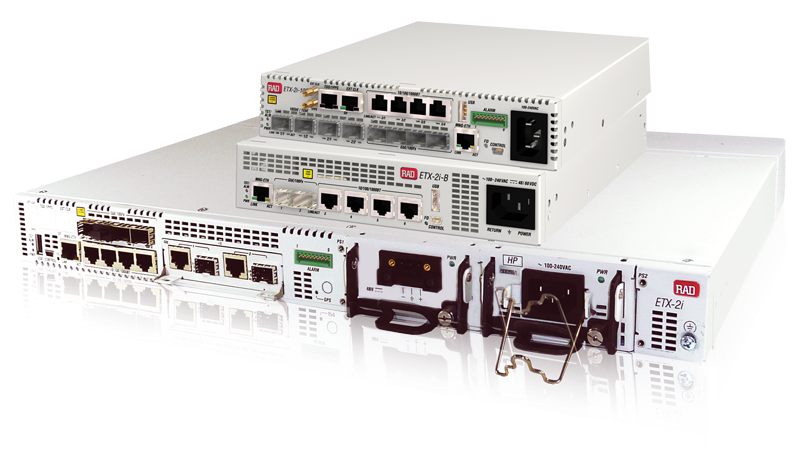

ETX-2i - IP and Carrier Ethernet Demarcation with D-NFV

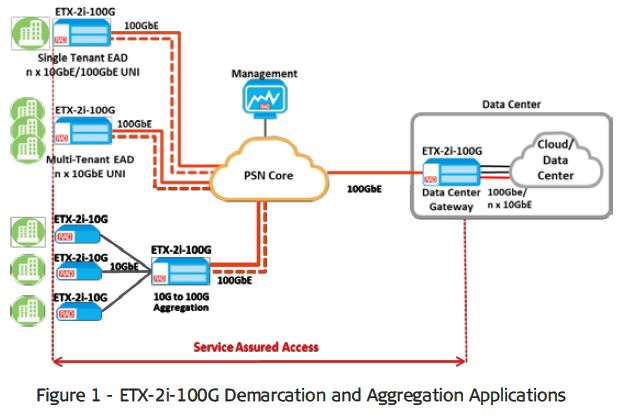

Part of RAD’s Service Assured Access solutions, the ETX-2i line of next-generation NID/NTUs and Ethernet demarcation device options enables advanced demarcation for SLA-based, L2, and L3 business services, wholesale services, and mobile backhaul. The ETX-2i offers a variety of Ethernet network products supporting 1-GbE, 10-GbE (10GB Ethernet), and 100-GbE connections.
MEF CE 2.0 demarcation and universal CPE (uCPE)
The ETX-2i also serves as a universal CPE (uCPE), Whitebox+, which enhances a pluggable x86 server module with plugware to enable superior performance for vCPE applications. It is supported by RADview management and orchestration.
Key Features:
- Three 100-GbE plus ten 1/10 GbE interface (SFP+)
- MEF-compliant service topologies, including E-Line, E-LAN, E-Tree, E-Access, and E-Transit services
- ITU-T G.8031 Ethernet linear protection, with sub-50 ms restoration time
- Advanced QoS with hierarchical policing and bandwidth shaping per EVC and EVC.CoS
- Accurate, scalable, hardware-based OAM and PM (ITU-T Y.1731 and TWAMP)
- ITU-T Y.1564 service activation testing at wire-speed
- Advanced management capabilities, fully compatible with the ETX-2 family and supported by RADview EMS/NMS and
- Performance Monitoring portal
- NETCONF/YANG support for intelligent service orchestration
- Zero-touch provisioning (ZTP) for scalable, secure, and rapid service rollout
- Redundant, hot-swappable AC or DC power supply
- Low power consumption for cost-effective operation
- 19” 1RU form factor
Solutions:
