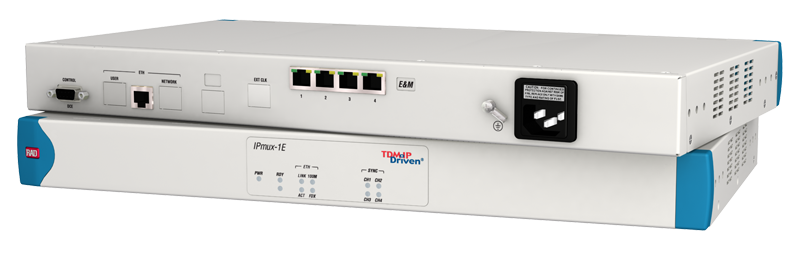

IPmux-1E - TDM Pseudowire Access Gateway

IPmux®-1E provides legacy services over packet networks. The device converts the
data stream from its user E1/T1, analog telephone or ISDN ports into packets for transmission over the network. The frame format of these packets is IP or Ethernet. These packets are transmitted via the
IPmux-1E Ethernet network port to the PSN. A remote pseudowire device converts the packets back to the original user traffic format.

A powerful internal Layer-2 Ethernet switch provides a user Ethernet port with rate limiting and port-based VLAN tagging capabilities. The device supports standard IP features, such as ICMP (ping), ARP, next-hop and default gateway.

ISDN BRI, E1/T1 or FXS/FXO/E&M over packet

Using TDM pseudowire technology, the IPmux-1E delivers ISDN BRI, echo-canceled E1/T1 or FXS/FXO/E&M services over packet transport, in addition to enabling transparent LAN bridging. It supports carriers in their migration to next-generation networks by allowing them to continue generating revenues from their ongoing legacy services over PSNs. The ease of installation and support for legacy and next-generation Ethernet and IP-based services make it ideal for small and medium-sized enterprises (SMEs).

Key Features:

• Transporting E1, T1, ISDN and analog phone traffic over packet-switched networks
• Four FXS, FXO or E&M voice ports for standard analog telephones and key system connections
• Four standard S0 NT or TE interfaces for ISDN basic rate service
• Minimal processing delay (under 3 msec)
• Configurable jitter buffer to compensate for network packet delay

Solutions:
