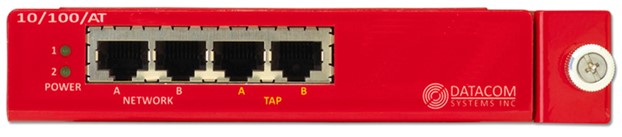

10-100-AT - Network TAP - Datacom Systems

The 10/100 Ethernet Tap is a single port device that provides a method to observe traffic on a full-duplex Ethernet segment. The 10/100 Ethernet Tap provides easy access to segments while maintaining network integrity. Network performance will not be affected by power loss.

Ideal for security applications and anywhere you need non-intrusive, dedicated access to your network links

Key Benefits

• Eliminates the need for network connectors to be disconnected and connected each time a segment needs to be analyzed
• Non-intrusive, fault-tolerant, invisible to the network
• Redundant power supply ensures seamless monitoring even if the main power source is unavailable
• Never lose packets from power failure - design guarantees network traffic will continue to flow uninterrupted
• View all traffic on both sides of full-duplex links
• Reduces degradation of switch performance due to port mirroring
• View Layer 1 and 2 errors such as runts and CRC errors
• It comes with convenient built-in rack-mount or uses an optional rack-mount package to mount 3 units (at 1U) and up to 14 units (at 4U).
• Passes all pairs\
• Supports Power over Ethernet (PoE)

Specifications

Network Connections

• 10/100 Tap (RJ45)

Monitoring Connections

• 10/100 (RJ45)

Power

• Two (2) External AC Adapters (included)
• Input: 100-240 VAC, 50-60Hz, 0.8A

Dimensions (H x W x D)

• 1.07 X 5 X 5 in
• 2.7 X 12.7 X 12.7 cm

Weight

• 8 oz.
• .23Kgs

Environmental

• Operating Temperature: 32º to 104ºF (0º to 40ºC)
• Storage Temperature: -22º to 149ºF (-30º to 65ºC)
• Humidity: 5 to 90% non-condensing

Certifications

• CE
• RoHS

Warranty

• Two (2) Year Standard Warranty

Ordering Information

• 10/100-AT    10/100 Ethernet Tap

Optional Rack Mount

• RMC-3
