RMC-12-2 - Chassis - Datacom Systems

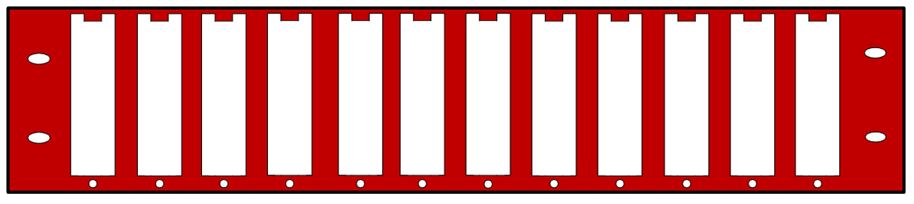

The RMC-12 chassis allows you to rack mount twelve compatible units in a 19-inch wide standard equipment rack. Twelve medium form factor devices can be racked side by side at 6U high. The RMC-2 is compatible with 1G (i.e. SS-1204BT-BT-S) and FTP-4000 devices.
Key Benefits
- Saves rack space
- Minimize power cord stress
- Permits power cord management with tie wraps (included)
Specifications
PORTS
- Permits installation of twelve (12) devices whose dimensions are 1.1 x 8 x 7 in or 2.7 x 20.32 x 17.78 cm
- RoHS
PHYSICAL DIMENSIONS (H x W x D)
- 10.5 x 19 x 12.25 in (26.7 x 48.3 x 31.1 cm)
WEIGHT
- 9 lbs (4.08 kgs)
ENVIRONMENT
- Operating Temperature: 32º to 104ºF (0° to 40°C)
- Storage Temperature: -22º to 149ºF (-30° to 65°C )
- Humidity: 5 to 90% non-condensing
WARRANTY
- One (1) Year Hardware Warranty included
ORDERING INFORMATION
Product Description
- RMC-12-2 12-TAP 6U Rack Mount Chassis
Optional Equipment
Product Description
- RMC-2 2-TAP 1U Rack Mount Chassis
- RPS-12-5-AC (or -DC) 12-TAP Dual Redundant Rack-Mountable Power Supply Unit (Specify AC or DC)
Have more questions about Datacom Systems Network TAPS, Packet Brokers and Bypass Switch Products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
