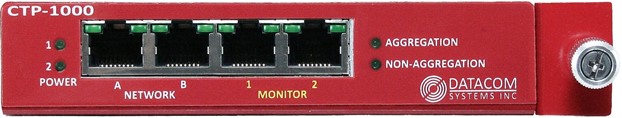

CTP-1000 - Network TAP - Datacom Systems

The CTP-1000 tap can be installed between any two network devices, such as firewalls, routers, or switches, and allow traffic to flow between these network points. The tap makes a copy of the data flowing through it, and provides the packet copy to network appliances or tools for application, security or recording purposes.

Ideal for security applications and anywhere you need non-intrusive, dedicated access to your network links

Key Benefits

• View entire full-duplex conversations using single-interface monitoring tools
• Decrease reliance on switch resources for network management visibility. Eliminate SPAN port contention, oversubscription, and configuration errors
• Deploy tools immediately without impacting your production network
• Easily share tap ports for improved monitoring without maintenance windows
• Single point of deployment and remote management minimizes management expenses and MTTR
• Easy to deploy- switch selects Aggregation/Non-aggregation mode

Specifications

PORTS
Network: One (1) 10/100/1000 Network Tap (RJ45)
Monitoring: Two (2) 10/100/1000 Any-to-Any Ports (RJ45)

POWER REQUIREMENTS
Two (2) External AC Adapters (included)
Input: 100-240 VAC, 50-60Hz, Max. 50mA at 120VAC

CERTIFICATIONS
CE, RoHS, CAN ICES-3 (A)/NMB-3(A), FCC Part 15 Class B

PHYSICAL DIMENSIONS (H x W x D)
1.07 x 5.00 x 5.00 in (2.7 x 12.72 x 12.7 cm)

WEIGHT
12 oz. (0.34 kgs)

ENVIRONMENT
Operating Temperature: 32º to 104ºF (0° to 40°C)
Storage Temperature: -22º to 149ºF (-30° to 65°C )
Humidity: 5 to 90% non-condensing
< 25 BTU/h

WARRANTY
One (1) Year Hardware Warranty included
Advanced Replacement-Next Day, 3rd Business Day, and return to factory options available
