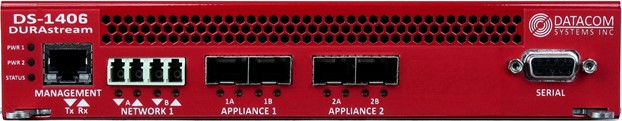

DS-1406 Bypass Switch - Datacom Systems
The DURAstream™ DS-1406 Bypass Switch is an easy-to-manage external active bypass providing failover for data monitoring of critical 10 Gigabit network segments. Line-rate throughput and real-time data forwarding hardware protects data and allows critical voice and data applications to perform uninterrupted and meet high demands for quality and security. Deployed with an in-line monitoring tool, a DURAstream™ Bypass Switch creates a comprehensive solution for intrusion prevention.
Key Benefits
- Optimized reliability of critical network links
- Achieve fail-safe monitoring with in-line monitoring tools such as IPS and DPI
- Improved network uptime and security
- Protects against abnormal traffic patterns
- Increased application availability
- Upgrade, maintain, or replace in-line devices without interrupting network operations
- Improved visibility to appliance performance.
- The high availability allows the installation of redundant inline tools
Specifications
PORTS
- Network Ports: Two (2) 10/1G Fiber
- Appliance Ports: Four (4) SFP+ (Supports SFP+ SR, LR, LRM, SFP SX, LX, BT)
- Management Port: RJ45
- Console Port: DB9
POWER REQUIREMENTS
- Dual Redundant Hot Swappable Power Supplies (Included)
- Maximum Power Consumption: Less than 90 Watts
- Individual Power Supply Rating: 100-240V ~50-60Hz 7A MAX.
CERTIFICATIONS
- CE
- RoHS
DIMENSIONS (HXWXD)
1.5 x 8.3 x 12.5 in (3.81 x 21.08 x 31.75 cm)
WEIGHT
3.75 lbs (1.7 kgs)
ENVIRONMENTAL
Operating Temperature: 32º to 104ºF (0º to 40ºC)
Storage Temperature: -22º to 149ºF (-30º to 65ºC)
Humidity: 5 to 90% non-condensing
WARRANTY
One (1) Year Hardware Warranty included. Advanced Replacement-
Next Day, third business day options available.
ORDER INFORMATION
DS-1406. DURAstream 6 Port 10G Bypass Switch. Supports 1 Network Link, 2 Appliances.
OPTIONAL EQUIPMENT
Product Description
- SFP+-SR/SX SR Multimode 10G/1G Transceiver
- SFP+-LR/LX LR Singlemode 10G/1G Transceiver
- SFP-SX 1G Multimode Fiber Transceiver
- SFP-LX 1G Singlemode Fiber Transceiver
- SFP-RJ45 1G Copper Transceiver
- RMC-2C Rackmount for DS-1406. Fits 2 units in a 1U chassis.
| Model | Network Fiber Diameter |
| DS-1406-5 | 50 Micron |
| DS-1406-6 | 62.5 Micron |
| DS-1406-9 | 9 Micron |
