RMC-2C - Chassis - Datacom Systems

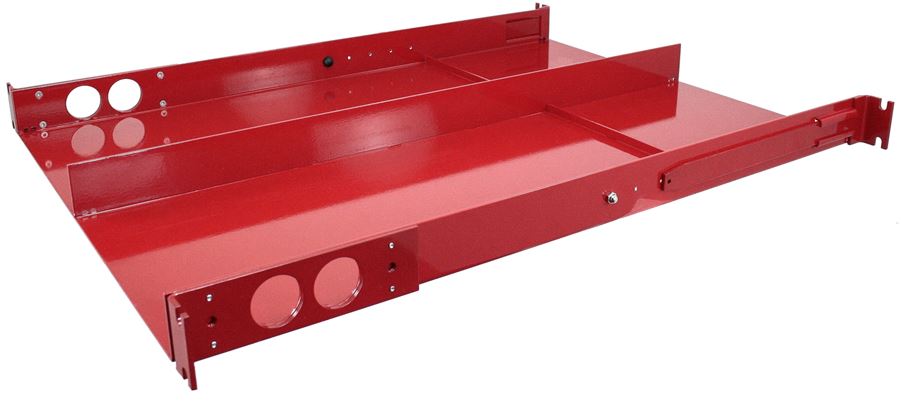

The RMC-2C chassis allows you to rack mount two compatible units in a 19-inch wide standard equipment rack. Two medium form factor devices can be racked side by side at 1U high. The RMC-2 is compatible with the following models:
- DS-1404
- DS-1406
- DS-2408
Key Benefits
- Minimize power cord stress
- Permits power cord management with tie wraps (included)
- Compact design incorporates power supplies to save rack space.
Specifications
PORTS
- Permits installation of two (2) devices whose dimensions are 1.5 x 8.3 x 12.5 in (3.81 x 21.08 x 31.75 cm)
- RoHS
PHYSICAL DIMENSIONS (H x W x D)
- 1.688" (H) x 19.000 (W) x 24.000" (D)
- 296.77 mm (H) x 482.6 mm (W) x 609.6 mm)
WEIGHT
- 4 lbs (1.81 kgs)
ENVIRONMENT
- Operating Temperature: 32º to 104ºF (0° to 40°C)
- Storage Temperature: -22º to 149ºF (-30° to 65°C )
- Humidity: 5 to 90% non-condensing
WARRANTY
- One (1) Year Hardware Warranty included
ORDERING INFORMATION
Product Description
- RMC-2C 2-Unit 1U Rack Mount Chassis
Have more questions about Datacom Systems Network TAPS, Packet Brokers and Bypass Switch Products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
