VS-1012-F - Network Packet Broker - Datacom Systems




12 Port Any-to-Any Switch with Load Balancing. Flexible, Any-to-Any Line-Rate Hardware Based Load Balancing and Packet Filtering for Cost-Effective Data Capture and Monitoring Applications

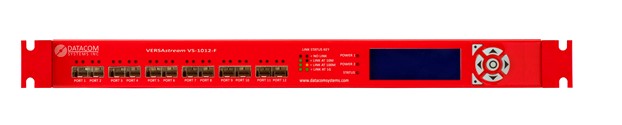

  VS-1012-F Network Packet Broker - Datacom Systems





Key Benefits



  • Load Balancing - Balance sessions across multiple outputs for monitoring redundancy
  • 240 Gbps backplane
  • All ports are active with full features no per port licensing. Input from passive TAPs or SPANs.
  • Filtering - Line-rate hardware-based filtering can eliminate port oversubscription.
  • Filter on IPv4 Src/Dst Address, MAC Address, Protocol, Port, Ethertypes i.e. MPLS, VLAN, IPv6 Src/Dst Address
  • Aggregation/Regeneration - Combine multiple network links or channels into one stream or send copies to multiple connected tools to share data sources
  • Media Conversion - Leverage existing monitoring tools regardless of media type
  • Manage device remotely or locally with Web-based management (HTTPs) or extensive CLI (telnet/SSH)
  • SNMP v2c, v3c
  • RADIUS, TACACS+



Specifications



ANY TO ANY PORTS

  • Any-to-Any Ports: Twelve (12) (Supports SFP SX, LX, BT)
  • Management Port: RJ45
  • Console Port: DB9

POWER REQUIREMENTS

  • Single or Dual Redundant Hot Swappable Power Supplies (Included)
  • Maximum Power Consumption: Less than 200 Watts
  • Individual Power Supply Rating: 100-240V ~47-63Hz 4A MAX.

CERTIFICATIONS

  • CE, RoHS

DIMENSIONS (HXWXD)

  • 1.72 x 19.00 x 21.00 in (4.37 x 48.26 x 53.34 cm)

WEIGHT

  • 18.15 lbs (8.23 kgs)

ENVIRONMENTAL

  • Operating Temperature: 32º to 131ºF (0º to 55ºC)
  • Storage Temperature: -22º to 149ºF (-30º to 65ºC)
  • Humidity: 5 to 95% non-condensing

WARRANTY

  • One (1) Year Hardware Warranty included. Advanced Replacement-Next Day, third business day options available.

FILTERING

  • IPv4 Address Sources and Destinations, Subnets
  • MAC Address Sources and Destinations
  • Ports
  • Ethertype
  • VLAN
  • IPv6 Address Sources and Destinations, Subnets

ORDER INFORMATION

Product Description

  • VS-1012-F VERSAstream™ 12 Port Data Access Switch SFPs Dual Power Supply
  • VS-1012-F-1 pwr VERSAstream™ 12 Port Data Access Switch SFPs Single Power Supply
  • SFP-SX SX (50 or 62.5 microns)
  • SFP-LX LX (9 microns)
  • SFP-RJ45 100/1000BT
  • Rackmount ears included.
