Arista 7280R Series Universal Leaf and IP Storage Networks
Designed for next-generation IP storage, Content Delivery, leaf and spine networks and Data Center Interconnect the Arista 7280R Series fixed-configuration switches combine dynamic and deep buffering for lossless forwarding with high density, internet scale table sizes, and comprehensive L2 and L3 features. Advanced EOS features for network monitoring; precision timing, VXLAN network virtualization, and rich automation are combined with extensive hardware resources. A choice of density and interface types allows the 7280R to meet the address of the myriad different applications and traffic patterns found in modern data centers.
Arista 7280R Advantages:
- Unparalleled Performance with Dynamic Deep Buffers and VOQ for Lossless forwarding
- Flexible design choices for 10G/25G/40G/50G and 100G
- Arista FlexRoute™ and EOS NetDB™ for internet peering with high density and low power
- Arista AlgoMatch™ for flexible and scalable network policy control
- Accelerated sFlow for high capacity network security and application monitoring
- EOS Open Programmability for Advanced Traffic Control, Provisioning, and Monitoring
The Arista 7280R Series FlexRoute engine and EOS NetDB provide the scalability to support the Internet IP routing scale with the lowest power consumption and fast convergence while scaling to millions of routes.
Arista AlgoMatch™ enables more flexible access controls with expanded scale across more fields with full capacity while providing additional capabilities for filtering. AlgoMatch is also the enabler for increased network telemetry using sFlow to sample traffic at hundreds of gigabits per second per system.
Flexible Solutions with 100GbE
- Up to 60 ports of 100G in 2RU, with 12Tbps of wire-speed performance
- High-Density wire-speed 1RU 48 port 10G or 25G systems with 6 100G uplinks
- A broad range of 1RU and 2RU systems with a combination of 40G and 100G systems for Universal Leaf and Spine designs
- Internet Peering Scalability with Arista FlexRoute
- Quad 10G or 25G mode support for seamless migrations
Datacenter Optimized
- Flexible choice of 40G and 100G interfaces
- Up to 128 Way Multi-Pathing over L2 and L3
- Power-efficient for a lower total cost of ownership
- Redundant and hot-swap power and cooling and choice of airflow options for hot and cold aisle
- NEBS Compliant for Tier1 Service Providers
Arista EOS
- Open Extensibility and Programmability
- Software Driven Cloud Networking
- Fine-grain modular protected memory architecture
- Access to Linux tools
- In-service-software-patches and Self-healing stateful fault repair (SFR)
Rich Feature Sets and Open Programmability
- Comprehensive switching and routing feature set with rapid convergence
- Full-featured IPv4 / IPv6, ACLs, and QoS
- VXLAN and 128-way multi-pathing
- LANZ for Microburst Detection
- VXLAN and EOS Network Tracers
- CloudVision® for Workflow Automation and Orchestration
- Accelerated sFlow for high capacity network security and application monitoring
Arista 7280R Series Technical Specifications
The Arista 7280R Series is a set of purpose-built 10/25/40/50/100G fixed configuration 1RU and 2RU systems designed for the highest performance environments such as IP Storage, Content Delivery Networks, Data Center Interconnect, and IP Peering. Wire-speed L2 and L3 forwarding are combined with advanced features for network virtualization, open monitoring and network analysis, resiliency, and architectural flexibility with deterministic performance. Deep packet buffers and large routing tables allow for Internet peering applications and the broad range of interfaces and density choice provides deployment flexibility.
The Arista 7280R Series FlexRoute™ engine provides the scalability to support deployment as a routing platform with Internet scale routing. Arista FlexRoute along with EOS NetDB™ enables innovations and convergence not natively available in merchant chipsets.
7280R Benefits
- Standards-based high-density 100G switch ideal for future proof designs and high bandwidth needs such as in High-Performance Storage or Content Delivery Networks (CDNs)
- Dynamic deep buffers in a fixed form factor make for an ideal top of rack switch where lossless performance and in-cast problems are expected such as in data analytics and IP storage
- Directly connected 25G, 40G, and 50G attached storage systems, requiring high performance and predictable latency
- Streaming network state for advanced analytics with CloudVision®
- Network-wide virtualization platform for next-generation cloud bursting with wire-speed VXLAN routing
- Hardware-assisted PTP enables accurate timing solutions across Ethernet-based networks without costly investment in separate timing networks
- Unique monitoring and provisioning features – LANZ, DANZ, AEM, IEEE 1588 PTP, ZTP, VM Tracer, VXLAN, and eAPI
- Comprehensive L2 and L3 feature set for open multi-vendor networks with no proprietary lock-in
- Large scale L2 and L3 table resources allow deployment flexibility in both large L2 and L3 environments with any-workload suitability
- NEBS compliance and DC power supplies designed for service provider environments

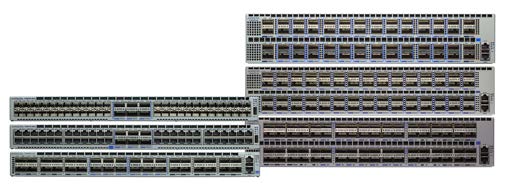

Arista 7280R Series:
7280CR Series
- High-Density 100G ports with flexible 10/25/40/50G support
- Maximum of 240 ports of 10G or 192 ports of 25GbE
- Up to 12Tbps of wire-speed performance with ultra-deep and dynamic buffers
- Up to 2M IPv4 routes with FlexRoute
- Optional AlgoMatch and Accelerated sFlow
7280QR Series
- 40GbE 1RU and 2RU systems with a choice of port combinations with QSFP+ and QSFP100 optics and cables
- Up to 72 ports of 40G in 2RU and 36 ports in 1RU systems
- Flexible interface combinations for 10/25/40/50/100G
- Up to 6.4Tbps of wire-speed performance with 16GB of buffer
- Over 1M IPv4 routes with FlexRoute
- Optional AlgoMatch

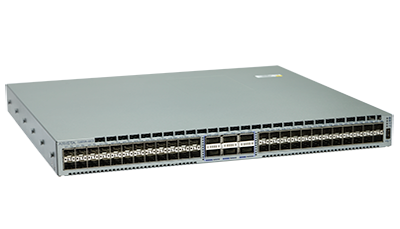

7280SR Series
- 1RU systems with a choice of 48 wire speed 10G SFP+ or 25G SFP ports with six QSFP100 for up to 72 total ports
- Six QSFP100 ports allows choice of 6 x 100G, 24x 25G, 6x 40G, or 24x 10G
- 5 speeds for flexible 10G, 25G, 40G, 50G, and 100G with optics or cables
- Up to 3.6Tbps of wire-speed performance with 8GB of buffer
- Up to 1.3M IPv4 routes with FlexRoute
- Optional AlgoMatch and Accelerated sFlow
- MACsec capable model for 100G encryption

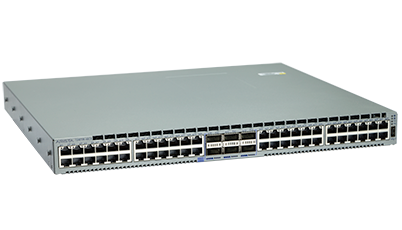

7280TR Series
- 1RU 10GBASE-T systems with 48 wire speed 1/10G ports with six QSFP100 for up to 72 total 10G ports
- Mix and match 1G and 10G on RJ45 ports
- Six QSFP100 ports allows choice of 6 x 100GbE, 24x 25GbE, 6x 40GbE, or 24x 10GbE
- 5 speeds for flexible 10G, 25G, 40G, 50G, and 100G with optics or cables
- 2.16Tbps of wire-speed performance with 4GB of buffer
- Over 1M IPv4 routes with FlexRoute
Arista 7280R Series Comparisons
The following tables compare Arista 7280R Series models.
7280R Series 10/40/100G Systems
7280CR-48 | 7280QR-C72 | 7280QR-C36 | 7280SR-48C6 | 7280TR-48C6 | 7280QRA-C36S | 7280SRA-48C6 | 7280TRA-48C6 | 7280SRAM-48C6 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 48-Port QSFP100 and 8-Port QSFP+ | 72-Port QSFP (56x40G and 16x100G) | 36-Port QSFP (24x40G and 12-Port 100G) | 48-Port SFP+ and 6-Port QSFP100 | 48-Port RJ45 and 6-Port QSFP100 | 36-Port QSFP (18x40G and 12-Port 100G) | 48-Port SFP+ and 6-Port QSFP100 | 48-Port RJ45 and 6-Port QSFP100 | 48-Port SFP+ and 6-Port QSFP100 |
| Max 100G Ports | 48 | 16 | 12 | 6 | 6 | 12 | 6 | 6 | 6 |
| Max 50G Ports | 96 | 32 | 24 | 12 | 12 | 24 | 12 | 12 | - |
| Max 40G Ports | 56 | 72 | 36 | 6 | 6 | 36 | 6 | 6 | 6 |
| Max 25G Ports | 192 | 64 | 48 | 24 | 24 | 48 | 24 | 24 | - |
| Max 10G Ports | 224 | 160 | 144 | 72 | 72 | 120 | 72 | 72 | 48 |
| L2/3 Throughput | 10.24 Tbps | 6.4 Tbps | 4.32 Tbps | 2.16 Tbps | 2.16 Tbps | 3.84 Tbps | 2.16 Tbps | 2.16 Tbps | 2.16 Tbps |
| L2/3 PPS | 5.76 Bpps | 2.88 Bpps | 1.44 Bpps | 720 Mpps | 720 Mpps | 1.44 Bpps | 720 Mpps | 720 Mpps | 720 Mpps |
| Latency | From 3.8us | From 3.8us | 3.8us | 3.8us | 3.8us | From 3.8us | From 3.8us | From 3.8us | From 3.8us |
| Typical Power Draw | 1363W | 725W | 324W | 263W | 290W | 419W | 313W | 290W | 382W |
| Total System Buffer | 32GB | 16GB | 8GB | 4GB | 4GB | 8GB | 4GB | 4GB | 4GB |
| Rack Units | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| CloudVision | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Smart System Upgrade | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| ZTP | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| VM Tracers | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| AEM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| VXLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| LANZ | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| AlgoMatch | No | No | No | No | No | Yes | Yes | Yes | Yes |
| Accelerated sFlow | No | No | No | No | No | No | No | No | Yes |
| Airflow | F/R | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F |

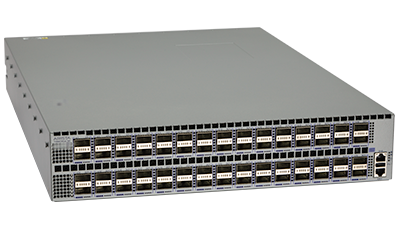

7280R2 and 7280R2A Series 10/25/40/100G Systems
| 7280CR2-60 | 7280CR2A-60 | 7280CR2K-60 | 7280CR2A-30 | 7280CR2K-30 | 7280SR2-48YC6 | 7280SR2A-48YC6 | 7280SR2K-48C6 | |
|---|---|---|---|---|---|---|---|---|
| Description | 60-Port QSFP100 | 60-Port QSFP100 | 60-Port QSFP100 | 30-Port QSFP100 | 30-Port QSFP100 | 48-Port SFP25 and 6-Port QSFP100 |
48-Port SFP25 6-Port QSFP100 |
24 x SFP25 24 x SFP+ 6 x QSFP100 |
| Max 100GbE Ports | 60 | 60 | 60 | 30 | 30 | 6 | 6 | 6 |
| Max 50GbE Ports | 120 | 120 | 120 | 60 | 60 | 12 | 12 | 12 |
| Max 40GbE Ports | 60 | 60 | 60 | 30 | 30 | 6 | 6 | 6 |
| Max 25GbE Ports | 240 | 240 | 240 | 120 | 120 | 72 | 72 | 48 |
| Max 10GbE Ports | 240 | 240 | 240 | 120 | 120 | 72 | 72 | 72 |
| L2/3 Throughput | 12 Tbps | 12 Tbps | 12 Tbps | 6 Tbps | 6 Tbps | 3.6 Tbps | 3.6 Tbps | 2.88 Tbps |
| L2/3 PPS | 5.02 Bpps | 5.02 Bpps | 5.02 Bpps | 2.51 Bpps | 2.51 Bpps | 1.67 Bpps | 1.67 Bpps | 835 Mpps |
| Latency | From 3.8us | From 3.8us | From 3.8us | From 3.8us | From 3.8us | From 3.8us | From 3.8us | From 3.8us |
| Typical Power Draw | 1660W | 1760W | 1760W | 565W | 565W | 425W | 450W | 313 W |
| Total System Buffer | 24GB | 24GB | 24GB | 12GB | 12GB | 8GB | 8GB | 4GB |
| Rack Units | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 |
| CloudVision | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Smart System Upgrade | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| ZTP | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| VM Tracers | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| AEM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| VXLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| LANZ | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| AlgoMatch | No | Yes | Yes | Yes | Yes | No | Yes | Yes |
| Accelerated sFlow | Yes | Yes | Yes | Yes | Yes | No | Yes | Yes |
| Airflow | F/R | F/R | F/R | F/R | F/R | F/R or R/F | F/R or R/F | F/R or R/F |
Common system resources:
| 7280R Series | 7280RA Series | 7280R2 Series | 7280R2A Series | 7280R2K Series | |
|---|---|---|---|---|---|
| MAC Table Size | 768K | 768K | 768K | 768K | 768K |
| Maximum v4/v6 Host Routes | 768K | 768K | 768K | 768K | 768K |
| Maximum IPv4 Route Prefixes | Up to 1.2M | Up to 1.2M | Up to 1.3M | Up to 1.3M | 2M |
| Maximum IPv6 Route Prefixes | Up to 928K | Up to 928K | Up to 1M | Up to 1M | 1.4M |
| Maximum Multicast Groups | Up to 768K | Up to 768K | Up to 768K | Up to 768K | Up to 768K |
| Maximum LAG Groups | 1152 | 1152 | 1152 | 1152 | 1152 |
| Maximum LAG Members | 64 Ports | 64 Ports | 64 Ports | 64 Ports | 64 Ports |
| Maximum ECMP Fanout | 128-way | 128-way | 128-way | 128-way | 128-way |
| Maximum ACL Entries | 24K | 24K | 24K | 24K | 24K |
