The Arista 7050X Series are a range of 1 and 2RU purpose-built 10/40G switches with wire speed layer 2/3/4 performance combined with low latency and advanced features for software-driven cloud networking, big data, cloud, virtualized and traditional deployments. The 7050X Series provides flexible options for scalable two-tier network designs and incorporate traffic control, monitoring, and provisioning features that support ease of use.
40G Spine Solutions: The New Standard in Data Center Networks

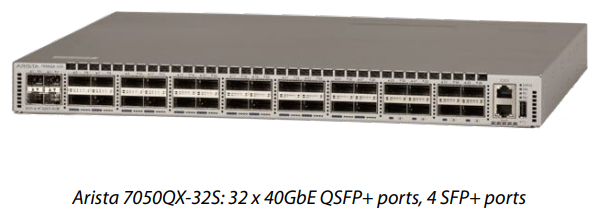

The Arista 1RU 7050QX switches deliver line-rate 40G performance, offering the lowest latency 32x40 Gbps switch in the world. The 7050QX is the ideal switch for:
- Scaling uplink bandwidth between data center leaf switches
- Ultra-high density 40GbE switching in a compact fixed form-factor structures
- Purpose-built spine aggregation switching (2.56 Tbps switching capacity)
The 7050QX can be deployed as an all 40G system or as a combination of 10G leaf ports and 40G spine ports within the same chassis. Power-efficient, compact footprint, flexible table sizes, and EOS innovations like SSU and MLAG make the 7050QX ideal for leaf and spine as well as scale-out ECMP designs. The 7050QX-32S offers 4 SFP+ ports that allow for 1/10G connections increasing the deployment options.
7050QX2-32S offers high-density, power-efficient 40G connectivity with line rate VXLAN routing capability in a single pass.
7050QX Switches Model Comparison | ||
---|---|---|
7050QX-32S | 7050QX2-32S | |
Total SFP+ Ports | 4 | 4 |
Total QSFP+ Ports | 32 | 32 |
Max 10G Interfaces | 96 | 96 |
Max 40G Interfaces | 32 | 32 |
Latency | 550ns | 550ns |
Typical Power Draw | 150W (4.5W per port) | 129W (4W per port) |
Industry-Leading Performance, Power-Efficiency, and High Availability

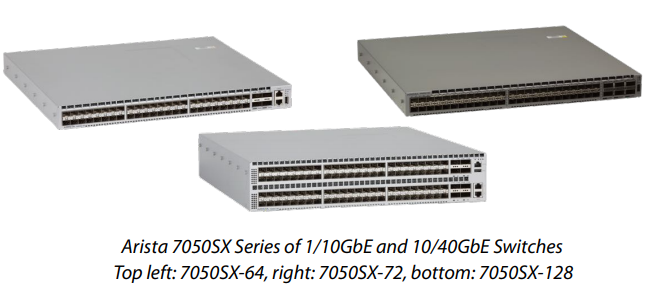

The Arista 7050SX switches offer wire-speed 10G and 40G versatility, plus flexibility for connecting servers and storage running:
- Business-critical applications
- High-performance computing
- \Highly virtualized cloud infrastructures
The 7050SX 1RU systems combine 48 host facing SFP+ interfaces with a choice of 10/40G options. The QSFP+ interfaces increase the system density up to 72 10 Gigabit ports or 48 10G and 6 40G ports. The combinations allow for design flexibility.
For higher density requirements the 7050SX-128 offers 96 10G SFP+ interfaces and 8 40G QSFP+ interfaces in 2 RU. All systems are ideal for top of rack or end of the row with consistent performance, and high availability.
7050SX2-72Q (48 SFP+ and 6 QSFP+ ports) and 7050SX2-128 (96 SFP+ and 8 QSFP+ ports) provide high-density platforms and deliver line rate VXLAN routing in a single pass.
Arista 7050SX Switches Model Comparison | |||||
---|---|---|---|---|---|
7050SX-64 | 7050SX-72Q | 7050SX2-72Q | 7050SX-128 | 7050SX2-128 | |
Total SFP+ Ports | 48 | 48 | 48 | 96 | 96 |
Total QSFP+ Ports | 4 | 6 | 6 | 8 | 8 |
Max 10G Interfaces | 64 | 72 | 72 | 96 | 96 |
Max 40G Interfaces | 4 | 6 | 6 | 8 | 8 |
Latency | 550ns | 550ns | 550ns | 550ns | 550ns |
Typical Power Draw | 140W | 144W | 127W | 235W | 214W |
10G at Gigabit Pricing

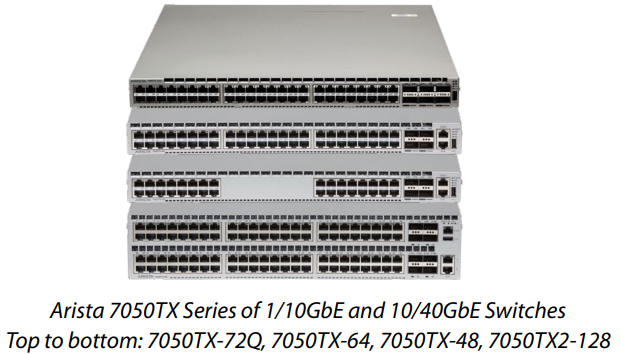

The Arista 7050TX switches offer triple-speed switching of 100Mbps/1G/10G and backward compatibility with installed Ethernet cabling and standard RJ-45 connectors. The 7050TX is the ideal switch for:
- Offering the most cost-effective media interfaces (copper)
- Leveraging existing cable plants, reducing installation and wiring costs
- Lower energy costs due to more efficient power and cooling, for greater TCO
The 7050TX 1RU systems combine up to 48 10GBASE-T interfaces with a flexible choice of 10/40G uplinks offering variable subscription ratios including 1:1. The wide range of models allows for simple migration from 1G to 10G, reusing existing cabling and either top of rack or end of row based on the requirements.
The increased performance, features and density ensures two-tier designs based on MLAG and ECMP that are scalable, power-efficient, and proven EOS reliability.
7050TX2-128 provides 96 10GBASE-T interfaces supporting 100M/1G/10G rates and 8 40G QSFP+ interfaces and delivers line rate VXLAN routing in a single pass.
Arista 7050TX Series Switches Model Comparison | ||||
---|---|---|---|---|
7050TX-48 | 7050TX-64 | 7050TX-72Q | 7050TX2-128 | |
Total 10GBASE-T Ports | 32 | 48 | 48 | 96 |
Total QSFP+ Ports | 4 | 4 | 6 | 8 |
Max 10G Interfaces | 48 | 64 | 72 | 96 |
Max 40G Interfaces | 4 | 4 | 6 | 8 |
Latency | 3.1µs | 3.1µs | 3.1µs | 3.1µs |
Typical Power Draw | 305W | 315W | 340W | 485W |
The following table compares the Arista 7050X Series models.
7050QX | 7050TX | 7050SX | |||||
---|---|---|---|---|---|---|---|
32S | 48 | 64 | 72Q | 64 | 72Q | 128 | |
Rack Units | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
10GBASE-T Ports | - | 32 | 48 | 48 | - | - | - |
SFP+ Ports | 4 | - | - | - | 48 | 48 | 96 |
QSFP+ Ports | 32 | 4 | 4 | 6 | 4 | 6 | 8 |
Max System Density 10G Interfaces | 96 | 48 | 64 | 72 | 64 | 72 | 96 |
Max System Density 40G Interfaces | 32 | 4 | 4 | 6 | 4 | 6 | 8 |
Typical Power | 150W | 305W | 315W | 349W | 140W | 144W | 235W |
AC and DC Power | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Airflow | F-R / R-F | ||||||
Optional SSD | Yes | ||||||
VXLAN | Yes | ||||||
LANZ | Yes | ||||||
AEM | Yes | ||||||
OpenFlow | Yes | ||||||
DirectFlow | Yes | ||||||
Smart System Upgrade | Yes |
7050QX2-32S | 7050TX2-128 | 7050SX2-72Q | 7050SX2-128 | |
Rack Units | 1 | 2 | 1 | 2 |
10GBASE-T Ports | - | 96 | - | - |
SFP+ Ports | 4 | - | 48 | 96 |
QSFP+ Ports | 32 | 8 | 6 | 8 |
Max System Density 10G Interfaces | 96 | 96 | 72 | 96 |
Max System Density 40G Interfaces | 32 | 8 | 6 | 8 |
Typical Power | 129W | 485W | 127W | 214W |
AC and DC Power | Yes | Future | Yes | Yes |
Airflow | F-R / R-F | |||
Optional SSD | Yes | |||
VXLAN Single pass | Yes | |||
LANZ | Yes | |||
AEM | Yes | |||
OpenFlow | Yes | |||
DirectFlow | Yes | |||
Smart System Upgrade | Yes |
