7010 Series - Arista Networks
High Performance and Power Efficient Data Center Gigabit Ethernet Switch
Data centers demand high-performance networking solutions. The Arista 7010T offers a purpose-built high performance and power-efficient solution for high-density data center deployments. The Arista 7010T series delivers line-rate switching at layer 2 and layer 3 to enable simpler network designs for data centers that lower the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale out in a high-performance two-tier network that provides predictable and consistent application performance.

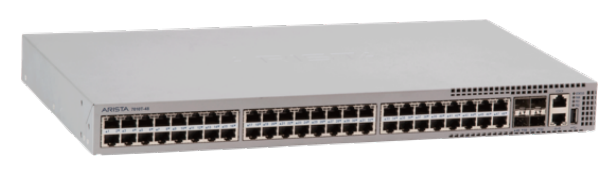

Offering a choice of two models the 7010T Series supports both AC or DC power. Both models have 48 RJ45 ports for 10/100/1000Mb Ethernet and 4 SFP+ ports for both 1G or 10G uplink connections using a wide range of optics and cables.
High-Performance Ethernet Access
- Non-Blocking 48 10/100/1000 Mbps (RJ-45) & four 1/10GbE uplinks (SFP+)
- Wire-speed Layer 2/3 switching up to 176 Gbps and 132 Mpps
- 40 gigabits of interconnect capacity from leaf to the spine
- 4MB packet buffer
Cloud Networking Ready
- Up to 84K MAC entries
- Up to 84K IPv4 and 42K IPv6 Host Routes
- Up to 16K IPv4 and 8K IPv6 Routes
- 64-way ECMP and 32-port MLAG
Datacenter Optimized
- Redundant power with power consumption under 1W/port
- Redundant & hot-swappable fans
- Field reversible fan module for rear-to-front or front-to-rear cooling
- 2 post and zero RU mounting
Arista EOS™
- Single binary image for all products
- Fine-grained truly modular network OS
- Full Access to Linux shell and tools
- Extensible platform - bash, python, C++
Advanced Provisioning and Monitoring
- VM Tracer
- OpenStack and eAPI
- Chef, Puppet, Ansible
- Zero Touch Provisioning (ZTP)
7010 Series Technical Specifications
The Arista 7010T family of Ethernet switches combines a compact form factor, low power, and cooling with performance, scalability, availability, and operational ease to meet the demands of today's higher performance enterprises.
Featuring a choice of two models the 7010T Series provides a choice of AC or DC power. Both models have 48 10/100/1000Mb RJ45 ports and 4 SFP+ ports for both 1G or 10G uplink connections with a full range of optics and cables. The Arista 7010T switches offer low latency and a shared packet buffer pool that is allocated dynamically to ports that are congested.
| 7010T-48 | |
|---|---|
| Description | Arista 7010 Series High performance and power efficient 1G Ethernet switch |
| Form Factor | 1 RU |
| Switching Throughput | 176 Gbps |
| Max Forwarding Rate | 132 Mpps |
| 10M/100M/1G Interfaces | 48 RJ45 |
| 10G | 4 SFP+ for 1/10G |
| Latency | Under 3 microseconds |
| Buffer | 4MB Shared |
| MAC Addresses | Up to 84K |
| IPv4 Host Routes | Up to 84K |
| IPv6 Host Routes | Up to 42K |
| IPv4 Routes | 16K |
| IPv6 Routes | 8K |
| Rack Space | 1RU |
| Typical Power | 52W for under 1W per port |
| Power Supplies | 2 (1+1 Redundant) |
| Fans | 2 Hot-Swappable (1+1 Redundant) |
| Airflow | Single reversible fan module for front to rear and rear to front |
Arista EOS and 7010 Series
The 7010 Series enables highly scalable two-tier network designs with MLAG and ECMP technologies, open protocols, and a comprehensive set of advanced monitoring and provisioning features to meet the demands of high-performance networks.
MLAG - All Active Multipath for Layer 2
- Standards-based protocol (LACP)
- Simplified or eliminates Spanning Tree topology
- Simple to understand and easy to engineer traffic
- ISSU for fully independent upgrades of MLAG members
ECMP - All Active Multipath for Layer 3
- Standards-based protocol (OSPF, BGP, ISIS)
- Eliminates L2 for exceptional scalability and fault tolerance
- Exceptional scale with consistent performance in 2 tiers
IPv4 and IPv6 Routing Support
- Comprehensive L2 and L3 forwarding table resources for more design choiceIPv4 and IPv6 Layer 3 routing (OSPF, BGP, ISIS, and PIM), enabling highly resilient multi-path networks.
- Advanced Monitoring and Provisioning
- ZTP fully automates network and server provisioning using standards-based protocols and scripting tools
Advanced Event Management suite (AEM)
- eAPI provides an open interface to EOS to allow Netops to build robust workflow automation
- OpenStack Neutron Support for integrated orchestration
- CloudVision for a topology agnostic single point of management
- VMTracer integration with VMWare to simplify monitoring of physical and virtualized environments
