High Performance and Deep Buffer One and Ten Gigabit Ethernet Switch
Datacenters demand high-performance networking solutions. The Arista 7020R Series expands the portfolio of Arista fixed and modular deep buffer systems with high performance and power-efficient solutions.
Designed for IP storage, Content Delivery, and leaf and spine networks, the Arista 7020R Series fixed-configuration switches combine dynamic and deep buffering for lossless forwarding with high density, large table sizes, and comprehensive L2 and L3 features. Ultra-deep buffers and VOQ provide lossless performance in demanding environments where congestion and large flows are present such as in Big Data environments or Media and Entertainment. The non-blocking architecture improves the performance of bandwidth-intensive applications found in High-Performance Storage or streaming video.
When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale out in a high-performance two-tier network that provides predictable and consistent application performance.

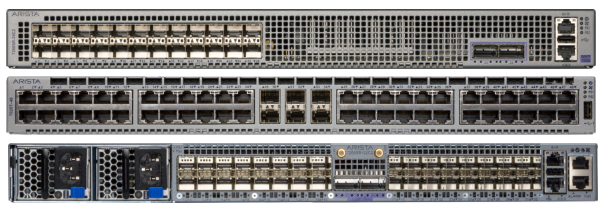

Offering a choice of models the 7020TR Series have 48 RJ45 ports for 100/1000Mb Ethernet and 6 SFP+ ports for both 1GbE or 10GbE uplink connections. The 7020SR Series have 24 or 32 SFP+ ports for both 1G or 10G connections and 2 ports of 100G.
Unparalleled Performance and Routing Scale with Dynamic Deep Buffers and VOQ
- Dynamic deep buffers solve 1GbE and 10GbE speed mismatches in High-Performance Computing and Oil and Gas Exploration Systems due to TCP incast
- Virtual Output Queue (VOQ) eliminates head of line blocking and virtually eliminates packet drops due to network congestion
- Arista FlexRoute™ and EOS NetDB™ for large scale routing with high density and low power
- EOS Open Programmability and comprehensive Advanced Traffic Control, Provisioning and Monitoring features
- High availability and power-efficient, purpose-built for modern data centers
High-Performance Universal Leaf
- Compact 24 or 32 port 10G solution with dedicated 100G QSFP uplinks for lower density server/storage racks, edge computing, and hyper-converged infrastructure
- High-performance solution with non-blocking 48 100/1000 Mbps (RJ-45) & six 1/10GbE uplinks (SFP+) for the top of rack
- Wire-speed Layer 2/3 switching up to 1.04 Tbps and 300 Mpps of throughput
- 3GB packet buffer for lossless forwarding
- Consistent architecture to 7280R Series for common operations, certification, and sparing
- 200 Gigabits of interconnect capacity from leaf to the spine
Cloud Networking and Arista FlexRoute
- Up to 256K MAC entries
- Up to 80K IPv4 and IPv6 Host Routes
- Up to 200K IPv4 and 100K IPv6 Routes with FlexRoute
- 128-way ECMP and 54-port MLAG
- Up to 12K ACLs
Arista EOS
- Open Extensibility and Programmability
- Software Driven Cloud Networking
- Fine-grain modular protected memory architecture
- Access to Linux tools
- In-service-software-patches and Self-healing stateful fault repair (SFR)
Rich Feature Sets and Open Programmability
- Comprehensive switching and routing feature set with rapid convergence
- Full-featured IPv4 / IPv6, ACLs, and QoS
- VXLAN and 128-way multi-pathing
- LANZ for Microburst Detection\
- VXLAN and EOS Network Tracers
- CloudVision® for Workflow Automation and Orchestration
- Accelerated sFlow for high capacity network security and application monitoring
- High-performance IPSec for the site to site VPNs up to 20Gb (7020SRG only)
Datacenter Optimized
- High availability and simple provisioning
- Redundant & hot-swappable AC and DC power with power consumption under 1Watt per Gb
- Redundant & hot-swappable fans
- 2 post and 4 post mounting with tool-less rails
- High-performance CPU with 8GB of memory
- * Not yet supported in EOS
Arista 7020R Series Technical Specifications
The Arista 7020R family of Ethernet switches combines a compact form factor, low power, and cooling with performance, scalability, availability, and operational ease to meet the demands of today’s higher performance enterprises.
Featuring a range of models the 7020R Series provides a choice of AC or DC power. The 7020SR has 24 10G SFP+ ports and 2 100G QSFP ports. The 7020TR has 48 100/1000Mb RJ45 ports and 6 SFP+ ports for both 1G or 10G uplink connections with a full range of optics and cables. The Arista 7020R switches offer low latency and a dynamic deep buffer architecture with VOQs for Lossless forwarding.
Arista 7020R Series Specifications
7020SR-32C2 | 7020SR-24C2 | 7020TR-48 | 7020TRA-48 | |
|---|---|---|---|---|
| Description | 32-Port SFP+ and 2-Port QSFP100 switch | 24-Port SFP+ and 2-Port QSFP100 switch | 48-Port RJ45 and 6-Port SFP+ switch | 48-Port RJ45 and 6-Port SFP+ switch |
| Form Factor | 1 RU | 1 RU | 1 RU | 1 RU |
| Switching Throughput | 1.04 Tbps | 880 Gbps | 216 Gbps | 216 Gbps |
| Max Forwarding Rate | 300 Mpps | 300 Mpps | 162 Mpps | 162 Mpps |
| Latency | Under 3.8 microseconds | Under 3.8 microseconds | Under 3.8 microseconds | Under 3.8 microseconds |
| System Buffer | 3GB | 3GB | 3GB | 3GB |
| MAC Table Size | Up to 256K | Up to 256K | Up to 256K | Up to 256K |
| Maximum IPv4 Hosts | Up to 64K | Up to 64K | Up to 64K | Up to 64K |
| Maximum IPv6 Hosts | Up to 64K | Up to 64K | Up to 64K | Up to 64K |
| IPv4/IPv6 Routes | 32K/16K | 32K/16K | 32K/16K | 32K/16K |
| IPv4/IPv6 FlexRoute | 200K/100K | 200K/100K | 200K/100K | 200K/100K |
| ECMP Fanout | 128-Way | 128-Way | 128-Way | 128-Way |
| LAG Members | 32 Ports / Channel | 32 Ports / Channel | 32 Ports / Channel | 32 Ports / Channel |
| LAG Groups | 32 groups per system | 32 groups per system | 54 groups per system | 54 groups per system |
| ACL Entries | 12K | 12K | 12K | 12K |
| Power Supplies | 2 (1+1 Redundant) | 2 (1+1 Redundant) | 2 (1+1 Redundant) | 2 (1+1 Redundant) |
| AC and DC | Yes | Yes | Yes | Yes |
| Fans | 2 hot-swappable | 3 hot-swappable | 4 hot-swappable | 4 hot-swappable |
| Airflow | F/R or R/F | F/R or R/F | F/R or R/F | F/R or R/F |
| CloudVision® | Yes | Yes | Yes | Yes |
| Smart System Upgrade* | Yes | Yes | Yes | Yes |
| ZTP | Yes | Yes | Yes | Yes |
| VM Tracers | Yes | Yes | Yes | Yes |
| AEM | Yes | Yes | Yes | Yes |
| VXLAN | Yes | Yes | Yes | Yes |
| LANZ | Yes | Yes | Yes | Yes |
| Hitless Speed Changes | Yes | Yes | Yes | Yes |
| Typical Power | 160W | 95W | 105W | 115W |
* Not yet supported in EOS
Arista EOS and 7020R Series
The 7020R Series enables highly scalable universal cloud network designs with MLAG and ECMP technologies, open protocols, and a comprehensive set of advanced monitoring and provisioning features to meet the demands of high-performance networks.
MLAG - All Active Multipath for Layer 2
- Standards-based protocol (LACP)
- Simplified or eliminates Spanning Tree topology
- Simple to understand and easy to engineer traffic
- ISSU for fully independent upgrades of MLAG members
ECMP - All Active Multipath for Layer 3
- Standards-based protocol (OSPF, BGP, ISIS)
- Eliminates L2 for exceptional scalability and fault tolerance
- Exceptional scale with consistent performance in 2 tiers
IPv4 and IPv6 Routing Support
- Comprehensive L2 and L3 forwarding table resources for more design choice
- IPv4 and IPv6 Layer 3 routing (OSPF, BGP, ISIS, and PIM), enabling highly resilient multi-path networks
- Network-wide virtualization platform for next-generation hybrid cloud bursting with wire-speed VXLAN routing and 128-way multi-pathing
Advanced Monitoring and Provisioning
- ZTP fully automates network and server provisioning using standards-based protocols and scripting tools
- Advanced Event Management suite (AEM)
- eAPI provides an open interface to EOS to allow Netops to build robust workflow automation
- OpenStack Neutron Support for integrated orchestration
- CloudVision for a topology agnostic single point of management
- VMTracer integration with VMWare to simplify monitoring of physical and virtualized environments
- Accelerated sFlow for high capacity network security and application monitoring
