HYPERMEDIA SIM GUARD

SIMGuard offers complementary add-ons for Hypermedia's HG-7000, HG-4000 and HG-3000 series. When operating in the call termination business, the vast majority of calls through a cellular gateway’s GSM ports are outbound ones. The VCG+ application provides an advanced solution for generating other types of cellular traffic, such as inbound GSM calls, incoming and outgoing SMS messages, calls to voice mailboxes, etc. VCG+ is the first element in the SIMGuard solution. It allows for tighter control and flexibility for the management of SIM Cards and offers the possibility of creating random automatic calls, at pre-defined times between GSM channels and/or gateways. Hypermedia's Enhanced Multi-SIM Manager (EMS) provides more control and flexibility for the SIMs Auto Manage. Currently supported by VCG+ are all HG3xxx, HG4xxx and HG7xxx systems which include a PC board.

When operating in the call termination business, the vast majority of calls through a cellular gateway’s GSM ports are outbound ones. The VCG+ application provides an advanced solution for generating other types of cellular traffic, such as inbound GSM calls, incoming and outgoing SMS messages, calls to voice mailboxes, etc.

• Limiting the number of calls per SIM per port
• Call counting based on X minutes of call length
• Call counters based on time or calls
• Grace period that assures that an active call will not disconnect during SIM switching

HyperGuard - Protect Your SIM Cards

SIMGuard - Enhanced Multi-SIM Manager (EMS+)

Complimentary SIM card Manager for Hypermedia HG-4000 and HG-3000 GSM gateways series, developed for leveraging the basic Multi-SIM capability. Hypermedia's Enhanced Multi-SIM Manager (EMS) provides more control and flexibility for the SIMs Auto Manage.

SIMGuard - Voice Call Generator +

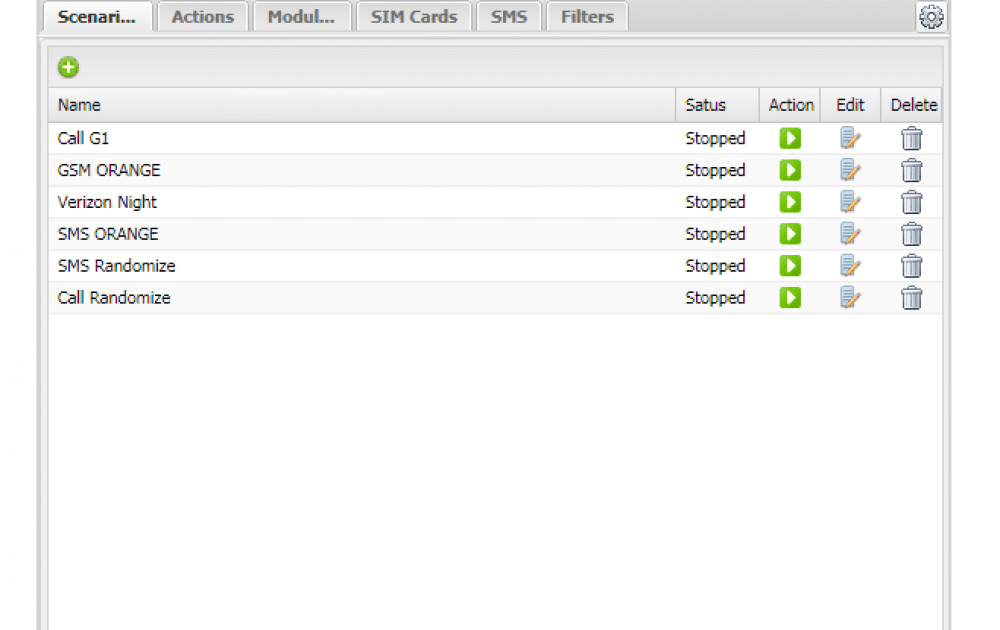

The VCG+ application generates various traffic models and allows defining multiple scenarios, each consisting of groups of GSM ports as well as lists of traffic simulation plans. Multiple configuration options such as activity times, call lengths and SMS contents are then available in deeper configuration levels.

VCG+ also generates daily detailed reports which include a summary of the various traffic events such as inbound and outbound SMS and calls

For the VCG+ application to generate traffic, you should define a set of actions (calls, SMS, voicemail calls, etc.), configure the phone numbers of all SIM cards, determine the content for the various SMS messages to be sent; and a few scenarios – each containing a set of actions, modules, and SMS messages -- should be determined.

An “action” includes a set of parameters explicitly defining a limited set of timed operations of any of the following types:

• SMS IN – Incoming SMS (sent through another SIM card belonging to the same scenario).
• CALL IN – Incoming voice calls (sent through another SIM card belonging to the same scenario).
• IVR OUT – Outgoing voice calls, including an optional DTMF string to be played, to a voice mailbox number or any other predefined service.

* Currently supported by VCG+ are all HG3xxx, HG4xxx, and HG7xxx systems which include a PC board.

Major Advantages:

The Multi-SIM Manager has been designed as a user-friendly tool for optimum utilization of cellular operators' SIM card plans (a.k.a air time packages). Depending on the SIM plan, the enhanced SIM manager enables to maximize SIM price plans usage and special dynamic tariffs and to squeeze the most out of every SIM package and hence, maximize savings.

• Individual settings can be configured for every single SIM card.
• Limiting the number of calls per SIM per port
• Call counting based on X minutes of call length
• Call counters based on time or calls
• Grace period that assures that an active call will not disconnect during SIM switching
