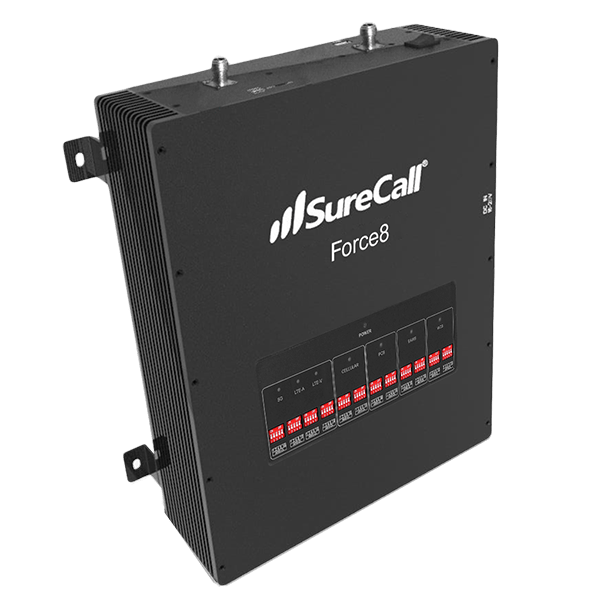

Force8
Cellular Signal Booster
Home Booster - SC-Force8
First & Only 5G Signal Booster That Improves 5G Service Inside Large Buildings
SureCall's Force8 is the first and only bi-directional cell signal amplifier for the 5G network that improves T-Mobile (600 MHz) inside large buildings. Additionally, Force8 is a HetNet and HetGen solution that improves cell service for every US cellular network and all cellular generations including 3G and 4G LTE voice, text, and data signals.
The Force8 industrial-grade signal booster is equipped SureCall Cloud powered by Sentry to allow remote access to make adjustments to the system anytime and anywhere via desktop or mobile application (iPhone | Android).
Key Features
- First 5G signal booster that improves 5G service inside buildings for T-Mobile (600 MHz)
- Improves 3G and 4G LTE voice, text, and data signals for every US cell carrier
- Eliminates dropped and missed calls in buildings up to 80,000 square feet
- Built-in Sentry remote monitoring system allows cloud-controlled adjustments to the booster anytime and anywhere via desktop or mobile app (iPhone | Android)
- Each band is independently configurable to function in the most challenging environments
- Customizable kitting and multi-amplifier scalability provide the flexibility to accommodate any floor plan
- 5G Phone Compatible - Boosts voice and 4G LTE data signals on 5G phones and devices
- Best-in-Industry three-year warranty
Product Specifications
| Part Number: | SC-Force8 |
| Uplink Frequency Range (MHz): | 663–716 / 776–787 / 819–849 / 1850–1915 / 1710–1755 |
| Downlink Frequency Range (MHz): | 617–652 / 728–746 / 746–757 / 864–894 / 1930–1995 / 2110–2155 |
| Supported Standards: | LTE-A, LTE-V, PCS, AWS, T-Mobile 600 MHz |
| Input/Output Impedance: | 50 Ohm |
| Maximum Gain: | 80 dB |
| Gain Adjustment Range: | 50 dB |
| Noise Figure: | 7 dB |
| VSWR: | ≤2.0 |
| Maximum Output Power: | 3 Watt EIRP |
| RF Connectors: | N Female (both ends) |
| Cable: | SC-400 (not provided) |
| AC Power Adapter: | Input AC 110-240 V, 60 Hz / Output DC 19 V |
| Power Consumption: | <65W |
| Operation Temperature: | -4º F to +158º F |
| Dimensions: | 12.96" x 16.43" x 3.86" |
| Weight: | 32.4 lbs |
| Certifications: | FCC: RSNFORCE8-IND / IC: 7784A-FORCE8 |
