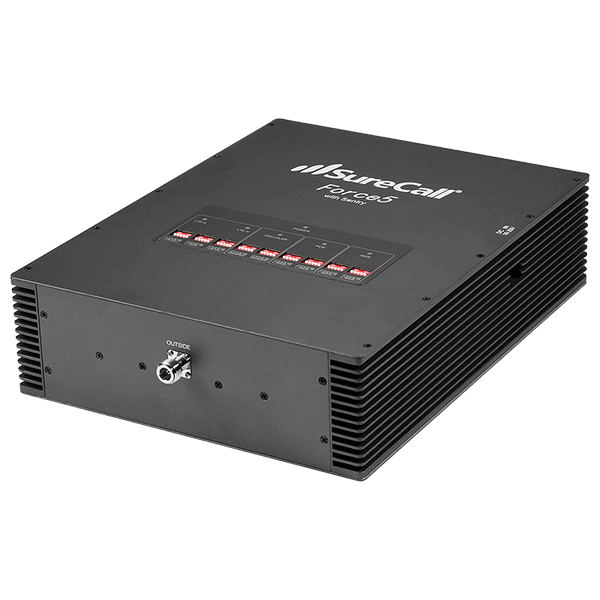

Force5 2.0
Cellular Signal Booster
Home Booster - SC-PolyO2-72
Most Powerful Cell Signal Booster for the Large Offices and Commercial Buildings
Commercial Integrator BEST and CE Pro BEST award winner, Force5 2.0™ is the next evolution in cellular signal boosting technology and the #1 DAS alternative.
Equipped with SureCall’s built-in Sentry remote monitoring hardware, Force5 2.0 is the first cell phone signal booster with integrated remote access to adjust and optimize booster performance from off-site via mobile app.
Key Features
- Boosts voice, text, and 4G LTE signals for all North American cell carriers
- Increases signal strength 25,000 sq ft in typical conditions and up to 100,000 sq ft in ideal conditions*
- Reduces dropped & missed calls and improves data performance
- SureIQ™ Technology balances incoming signals, preventing shutdown and maximizing performance in strong signal environments
- +17 dBm downlink power provides expansive indoor coverage
- Multiple kitting options offer the flexibility to customize installation in any building or floor plan
- 5G compatible - Force5 2.0 supports 4G LTE and 5G devices
- Industry best 3-year warranty and lifetime US-based tech support, 5-year extended warranty available
*Coverage up to 100,000 sq ft in ideal conditions with outdoor signal strength -50dB or stronger and open indoor spaces. Additional antennas may be required.
SENTRY REMOTE MONITORING
Force5 2.0's integrated Sentry hardware offers seamless off-site adjustments to maximize performance at every location. A must-have for building owners, managers, and installers, Sentry provides fast adjustments via remote access when continuous uptime is mission-critical.
- Access via Android® app, iPhone® app, or Sentry web portal
- Quickly pinpoint malfunctions due to unforeseen changes such as newly installed cellular towers or repeater systems
- Immediately notifies you about booster changes and over-powering
- Remotely monitor and adjust booster performance, including uplink, downlink, or band
- Optimize installation by monitoring and identifying the strongest signal strength available
Product Specifications
| Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
| Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
| Supported Standards: | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE, and all cellular standards |
| Input/Output Impedance: | 50 Ohm |
| Maximum Gain: | 72 dB |
| Noise Figure: | 5 dB |
| VSWR: | ≤2.0 |
| AC Power Transmitter: | Input AC 110 V, 60 Hz / Output DC 15-20 V |
| Maximum Output Power: | 1 Watt EIRP |
| Cable: | SC-400 |
| RF Connectors: | N Female (both ends) |
| Operating Temperature: | -4°F to +158°F |
| Power Consumption: | <65W |
| Dimensions: | 14.5" x 11" x 3.5" |
| Weight: | 23.5 lbs |
