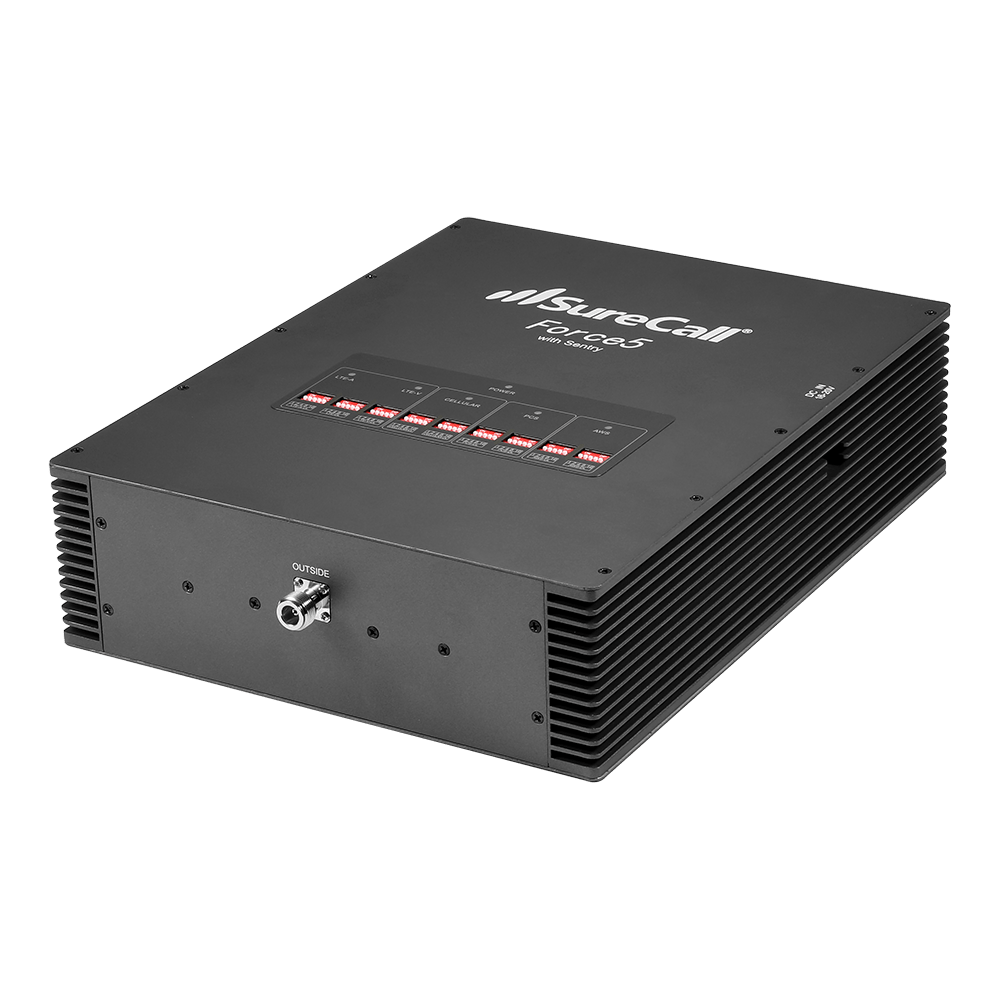

Force5 2.0 Industrial
Cellular Signal Booster
Home Booster - SC5000-80-RM
Voice, Text & 4G LTE Cell Phone Signal Booster for Buildings up to 80,000 sq ft
Known as a wideband DAS solution, the 80dB SureCall Force5 2.0 Industrial BDA provides improved cellular coverage for large and enterprise buildings. The self-contained cell phone signal booster improves signal strength for all major North American cell carriers resulting in decreased dropped and missed calls and improved 4G LTE data performance.
Additionally, the Force5 2.0 Industrial comes equipped with built-in remote monitoring through SureCall's proprietary Sentry software and hardware. This allows integrators to optimize booster performance during installation and while located off-site using the Sentry mobile app or desktop portal.
Key Features
- Boosts signal for voice, text, and 4G LTE data for all major North American carriers
- Coverage for large buildings up to 80,000 sq ft
- Supports 100+ simultaneous users
- Reduces dropped and missed calls and improves data performance for large or enterprise buildings
- Built-in Sentry remote monitoring system that allows attenuation adjustment via mobile app or desktop portal
- High linearity across all frequency bands allowing for maximum data throughput
- Each band is independently configurable to function in the most challenging environments
- Max downlink power for superior performance even with excessive signal (no shutdown)
- 5G Phone Compatible - Boosts voice and 4G LTE data signals on 5G phones and devices
- Industry-leading 3 year warranty, 5-year extended warranty available
SENTRY REMOTE MONITORING
Force5 2.0's integrated Sentry hardware offers seamless off-site adjustments to maximize performance at every location. A must-have for building owners, managers, and installers, Sentry provides fast adjustments via remote access when continuous uptime is mission-critical.
- Access via Android® app, iPhone® app, or Sentry web portal
- Quickly pinpoint malfunctions due to unforeseen changes such as newly installed cellular towers or repeater systems
- Immediately notifies you about booster changes and over-powering
- Remotely monitor and adjust booster performance, including uplink, downlink, or band
- Optimize installation by monitoring and identifying the strongest signal strength available
Product Specifications
| Part Number: | SC5000-80-RM |
| Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
| Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
| Supported Standards: | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
| Input/Output Impedance: | 50 Ohm |
| Maximum Gain: | 80 dB |
| Max Uplink Power: | 17 dBm |
| Noise Figure: | 5 dB |
| VSWR: | ≤2.0 |
| AC Input / Output: | Input AC 110 V, 60 Hz / Output DC 19 V |
| Maximum Output Power: | 3 Watt EIRP |
| Cable: | SC-400 |
| RF Connectors: | N Female (both ends) |
| Power Consumption: | <65W |
| Operation Temperature: | -4º F to +158º F |
| Dimensions: | 14.5" x 11" x 3.5" |
| Weight: | 26.5 lbs |
Have more questions about SureCall Cellular Booster solutions? Need to Purchase SureCall Cellular Booster Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
