Mobile Core

Multi-channel cellular LTE, WI-FI, GPS, and Land Mobile Radio extension

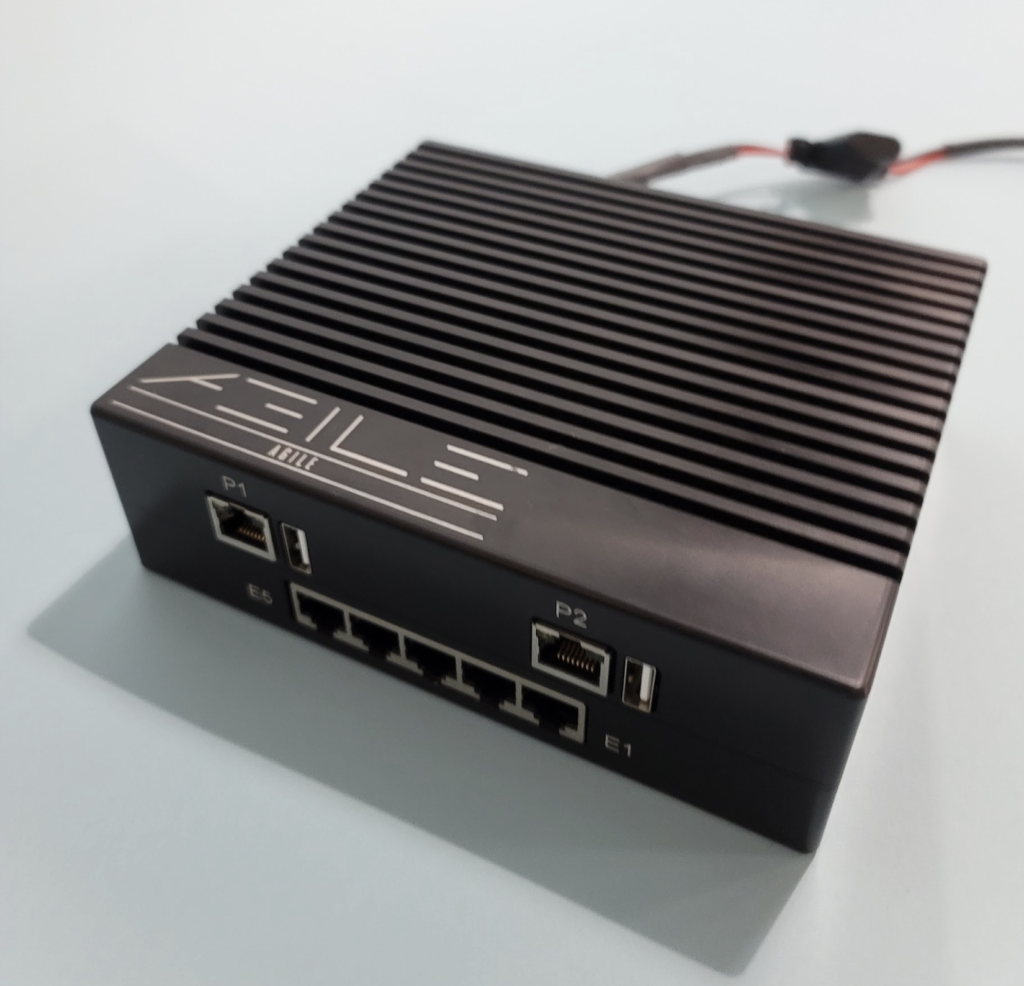

AGILE Mobile CORE is a communications hub that is purpose-built for a variety of applications. Mobile CORE is a compact, rugged, and durable device that integrates bonded multi-channel cellular LTE, Wi-Fi, GPS, and optional Land Mobile Radio extension capabilities. A Mobile CORE may be mounted in any vehicle, secured in a portable backpack (CORE Patrol), installed in a rugged carry along with case (CORE Commskit), or located at a stationary facility. Designed for ease of use utilizing leading-edge technology, Mobile CORE is ready to keep pace with your growing communications needs.

.

Key Features

• Compact and rugged design allows for a variety of deployment solutions
• DC power
• No moving parts are affected by vehicle movement
• Passively cooled for a wide range of temperatures
• 4 LTE channels / 4 SIM slots for each Mobile CORE
• The large, secure Wi-Fi coverage area for body cams, healthcare monitoring devices, and other wireless systems
• GPS tracking embedded in the unit
• Interconnect points for mobile data units, biometric equipment, and other devices
• It May be deployed singularly or throughout a large enterprise

SCALABILITY AND EASE OF OPERATION

Every Mobile CORE has sophisticated software that manages cell tower handoffs as you travel, maximizing signal strength and automatically searching for the best throughput connection available. The use of bonded LTE aggregation allows Mobile CORE users the ability to maintain session persistence even if one or more of the cell connections fail for any reason. The optional LMR extension functions in the background to detect loss of service to the trunked radio network and will send the transmission over the LTE connection. This requires no action by the operator.

FOUR LTE RADIOS
Four cellular LTE radios on board that can hold 4 SIM cards locally in the Mobile CORE’s SIM slots or virtually from an optional CORE Control 2 system installed at your data center.

CORE Control
The remote management server CORE Control monitors configure and checks in on all Mobile CORE systems reducing maintenance and downtime while providing integrated system status reports.

AUTO REGISTRATION
Mobile CORE systems automatically register with the optional CORE Control server when turned on and are visible on the network for the entire duration. If CORE Control 2 is added appropriate remote SIM cards can be distributed per plan.

LARGE RANGE
Powerful and secured Wi-Fi with a large effective range for secured authorized devices. Wi-Fi mesh is possible with multiple Mobile CORE systems deployed in a given territory.

FLEXIBILITY TODAY AND TOMORROW

Mobile CORE has four cellular LTE radios on board that covers most frequencies of service around the world, including all major North American carriers, and is Band-14 ready. This flexibility frees you from being limited to just one service provider when you purchase your LTE router and from having to replace your hardware when switching to a new cellular service provider.

AGILE ROUTING

Our devices automatically search for the best throughput connection available. If all LTE connections are lost, Mobile CORE will automatically connect to the satellite. If the device finds an LTE connection it will reconnect to the first available LTE service, hands-free. The customer does not have to monitor AGILE routing.

Mobile CORE systems are available in 2 versions:

Mobile CORE – 4 LTE radios 150 Mbps (down) / 50 Mbps (up), 4 SIM slots, dual processor, a mobile cellular gateway with 2.4 and 5.0 Wi-Fi, Edge Computing capability. Order code –FNG-104.

Mobile CORE X2 – 4 LTE high throughput radios 1.2 Gbps (down) / 150 Mbps (up), 4 SIM slots, dual processor, a mobile cellular gateway with 2.4 and 5.0 Wi-Fi, Edge Computing capability with application processor and solid state drive storage. Order Code –FNG-104 X2.

Data Sheet

Mobile Core - Small, ruggedized, and durable device that integrates bonded multi-channel cellular LTE, WI-FI, GPS, and Land Mobile Radio extension capabilities
