Core Patrol

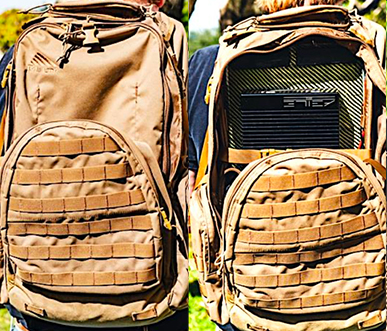

Tactical communications hub installed in a military-grade backpack

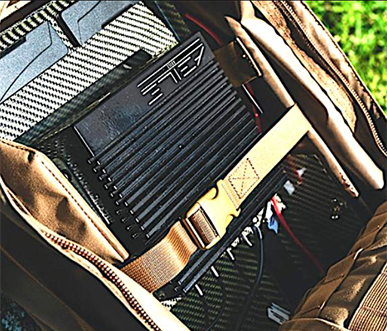

AGILE Mobile CORE is available in a variety of CORE Patrol configurations. CORE Patrol is a tactical communications hub built within a military-grade backpack that enables communication in terrain or conditions wherein absolute mobility is required leaving the user's hands-free. CORE Patrol contains a 4 Channel Mobile CORE a compact, rugged device that integrates bonded multi-channel cellular LTE, Wi-Fi, GPS, and optional Land Mobile Radio extension capabilities (CORE Patrol LMR). Every CORE Patrol contains a rugged router, long-life batteries, and built-in LTE and GPS antennas. All of the benefits of the AGILE Mobile CORE in a package that can be transported to any location when even a portable case is difficult to manipulate.

.

Key Features

• Military-Grade Backpack
• Battery time is 16 to 76 hours depending on the CORE Patrol version, 12 V, 20 Ah
• 4 LTE channels / 4 SIM slots for each CORE Patrol
• GPS tracking embedded in each CORE Patrol
• May be deployed singularly or in a peer-to-peer mesh with other AGILE CORE systems
• Passively cooled for a wide range of temperatures
• Large, secure Wi-Fi coverage area for body cams, monitoring devices, and other wireless systems
• Interconnect points for mobile data units, biometric equipment, and other devices
• CORE Control adds remote management for multiple CORE based systems
• CORE Control 2 adds virtual SIM management, centralizing SIM cards while allocating the correct SIM cards per location of each CORE system

SCALABILITY AND EASE OF OPERATION

Every CORE Patrol has sophisticated software that manages cell tower handoffs as you travel, maximizing signal strength and automatically searching for the best throughput connection available. The use of bonded LTE aggregation allows CORE Patrol users the ability to maintain session persistence even if one or more of the cell connections fail for any reason. The optional LMR extension functions in the background to detect loss of service to the trunked radio network and will send the transmission over the LTE connection. This requires no action by the operator.

FLEXIBILITY TODAY AND TOMORROW

CORE Patrol has 4 cellular LTE radios on board that covers most frequencies of service around the world, including all major North American carriers, and is Band 14 ready. This flexibility allows you not to be limited by one service provider when you make your LTE router purchase or have to change your hardware if you are changing your service provider.

AGILE ROUTING

Our devices automatically search for the best throughput connection available. If all LTE connections are lost, CORE Patrol will automatically connect to the satellite. If the device finds an LTE connection it will reconnect to the first available LTE service, hands-free. The customer does not have to monitor AGILE routing.

CORE Patrol is available in the following configurations:

CORE Patrol – Mobile CORE equipped with 4 LTE radios 150 Mbps (down) / 50 Mbps (up), 4 SIM slots, a dual processor with 2.4 and 5.0 Wi-Fi, Edge Computing capability, hardened router, GSM and GPS antennas, 12V, 20Ah batteries, contained within a military-grade backpack. Order code – FNP-104.

CORE Patrol X2 – Mobile CORE equipped with 4 LTE high throughput radios 1.2 Gbps (down) / 150 Mbps (up), 4 SIM slots, dual processor with 2.4 and 5.0 Wi-Fi, Edge Computing capability with an application processor and solid-state drive storage, hardened router, GSM and GPS antennas, 12V, 20Ah batteries, contained within a military-grade backpack. Order Code – FNP-104X2.

CORE Patrol LMR – Mobile CORE equipped with 4 LTE radios 150 Mbps (down) / 50 Mbps (up), 4 SIM slots, a dual processor with 2.4 and 5.0 Wi-Fi, Edge Computing capability, hardened router, LMR Extension, GSM and GPS antennas, 12V, 20Ah batteries, contained within a hardened waterproof case. Order code – FNP-104L.

CORE Patrol LMR X2 – Mobile CORE equipped with 4 LTE high throughput radios 1.2 Gbps (down) / 150 Mbps (up), 4 SIM slots, a dual processor with 2.4 and 5.0 Wi-Fi, Edge Computing capability with an application processor, and solid-state drive storage, hardened router, LMR Extension, GSM and GPS antennas, 12V, 20Ah batteries, contained within a hardened waterproof case. Order Code – FNP-104X2L.

Data Sheet

Core Patrol - Communications hub designed for yachts, ships, or any location that experiences moist conditions.

Have more questions about Agile Secure Communication products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
