Core RM

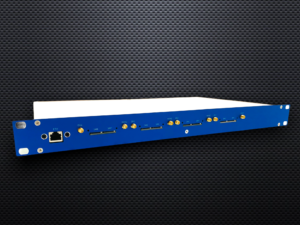

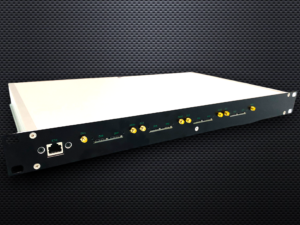

RACKMOUNT 8 CHANNEL LTE RADIO DEVICE THAT INTEGRATES BONDED MULTI-CHANNEL CELLULAR LTE, WI-FI, GPS, AND LAND MOBILE RADIO

The AGILE CORE RM series are IP to LTE rack-mounted gateways that integrate bonded multi-channel cellular LTE, Wi-Fi, and optional Land Mobile Radio extension capabilities. CORE RM is typically secured in a telecom rack that can be in a fixed location or in a mobile package such as the AGILE CORE system. CORE RM provides telecommunication access for data, voice, SMS, and fax with eight LTE channels. Each LTE channel supports voice, SMS, and data up to 150 Mbps downstream and 50 Mbps upstream. CORE RM X1 sources SIM cards installed internally in the CORE RM chassis. CORE RM X2 is licensed for service via the AGILE CORE Control system. Designed for ease of use utilizing leading-edge technology CORE RM is ready to keep pace with your growing communications needs.

Key Features

• 1U 19 inch rackmount design simplifies installation
• AC power (DC power optional)
• Passively cooled for a wide range of temperatures
• 8 LTE channels / 8 SIM slots for each CORE RM
• LTE Cat 4 module optimized for M2M and IoT applications
• Channel bonding and load balancing for high throughput

SCALABILITY AND EASE OF OPERATION

CORE RM has an internal high throughput architecture that utilizes Gigabit bandwidth for data applications like VPN and provides a download speed of up to one Gbits. With 8 LTE channels, you can split your traffic to standard Internet access, separate secure VPNs, and/or ‘binding’ different users and different 4G/LTE channels. With the optional CORE Control, you can manage every CORE system. With CORE Control 2 you can add remote SIM management. The integrated MIMO antenna architecture of the CORE RM with just one antenna for MAIN and DIV for two 4G/LTE channels enables the best coverage and throughput with just eight antennas.

EIGHT LTE RADIOS
Eight cellular LTE radios on board that can hold 8 SIM cards locally in the CORE RM SIM slots or virtually from an optional CORE Control 2 system installed at your data center.

CORE Control
The remote management server CORE Control monitors configure and checks in on all CORE RM systems reducing maintenance and downtime while providing integrated system status reports.

AUTO REGISTRATION
CORE RM systems automatically register with the optional CORE Control server when turned on and are visible on the network for the entire duration. If CORE Control 2 is added appropriate remote SIM cards can be distributed per plan.

FLEXIBILITY TODAY AND TOMORROW

CORE RM has eight cellular LTE radios on board that covers most frequencies of service around the world, including all major North American carriers. This flexibility frees you from being limited to just one service provider when you purchase your LTE gateway and from having to replace your hardware when switching to a new cellular service provider.

AGILE ROUTING
CORE RM is the ideal solution as a backup when primary land-based services fail or are not available or as the standard WAN connection using customer-provided satellite or land-based services. Once configured CORE RM will manage the switching with no user action required.

CORE RM is available as follows:

CORE RM X1 – 8 LTE radios 150 Mbps (down) / 50 Mbps (up), 8 SIM slots, dual processor, mobile cellular gateway (internal SIMs). Order code – FNG-108-X1.

CORE RM X2 – 8 LTE radios 150 Mbps (down) / 50 Mbps (up), 8 SIM slots, dual processor, mobile cellular gateway (CORE Control). Order code – FNG-108-X2.

Data Sheet

Core RM - Rackmount 8 channel LTE radio device.
