EasyCell Series - 4G/LTE Small Cell Backhaul
The need for high capacity connectivity in the urban area is a new requirement brought in Mobile networks by the introduction of 4G/LTE small cell. Densification and geographical distribution at street level of the access points are characterizing the need for a new backhauling model. EasyCell is a family of products comprising of sub 6GHz solutions, PTP and PtMP connectivity, with True-NLOS smart antennas, millimeter-wave (V band) 60GHz PTP high capacity links, and a MEF 2.0 aggregation gateway offering the best solutions toolbox to address the urban canyon connectivity challenge.
EasyCell family includes:
- EasyCell60, V-band (60 GHz) millimeter-wave radio link
- EasyCell-NT, Sub6 (2.6 GHz, 3.5 GHz, and 5.4-5.8 GHz) solution
- EasyCell Gateway, MEF 2.0 Ethernet aggregation equipment
Key Features - EasyCell60:
- 1.0 Gbps full-duplex - FDD •
- 500 MHz FDD channel BW
- QPSK-8PSK ACM
- Full Carrier Ethernet protocol stack
- Synchronous Ethernet and IEEE 1588v2 TC support.
- 35W reduced consumption, POE+ (802.3at)

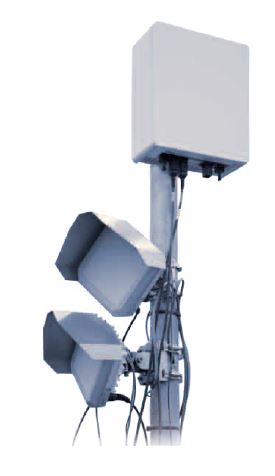

Key Features - EasyCell-NT:
- Smart Antenna with Beamforming and null forming
- Up to 400 Mbps aggregated throughput per link
- 10 to 40 MHz channel bandwidth
- OFDM (256 QAM ACM on each sub-carrier)
- PtP and PMP applications. PMP link
- capacity independent on the number of End Nodes

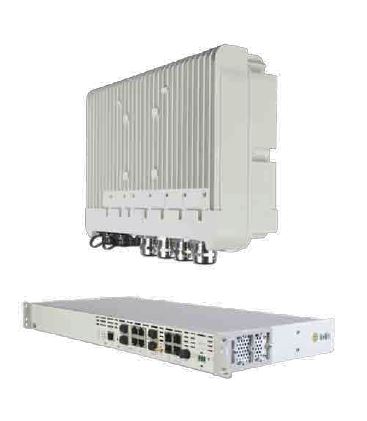

Key Features - EasyCell Gateway:
- Indoor and Outdoor casing
- Up to 4x PoE ports + 2 SFP ports
- POE++ up to 80W each, with Max 150W load
- Integrated voltage up-converter on PoE ports for maximum cable reach
- Synchronous Ethernet and IEEE
- 1588 v2 support
- MEF2.0 fully compliant
Typical Applications
A high integration level to packaging in the TRMD; the Transmitter (TX), Receiver (RX), Mo-demodulator and baseband functions. The one rack chassis can host up to 4 bidirectional RF carriers. The minimization of frequency-dependent spare parts has been achieved through the use of wide-band units. Easy operation and maintenance: no adjustment or provisional settings are required.
| EasyCell60 | EasyCell-NT | EasyCell Gateway |
|
|
|
