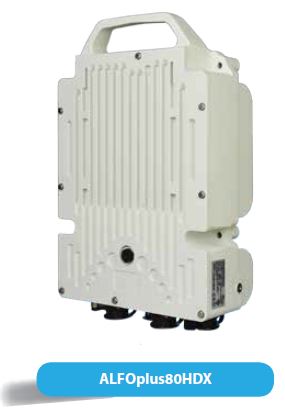

ALFOplus80HDX - Millimeter-Wave Radio - 80Ghz
From 10 to 20 Gbps E-Band Full Outdoor. Whether in mobile, fixed or private networks, the E-band millimeter wave solution represents a fundamental technology tool bridging the gap between fiber high capacity systems and flexible cost-effective wireless transmission. Today, our 3rd generation E-band solution, the ALFOplus80HDX, achieves 10Gbps full-duplex, ultra-high capacity. ALFOplus80HDX provides fiber-like capacity, highest deployment flexibility and homogeneous operational behavior as traditional microwave, allowing operators to fully liaise on existing knowledge and skills, minimizing introduction costs, while modernizing the transport network.
UNIVERSAL PRODUCT ARCHITECTURE
Microwave radio products have evolved in terms of functionality and physical arrangements to cover in an effective and efficient way they can be employed in any application.
ALFOplus80HDX as part of the SIAE MICROELETTRONICA Unified Product Architecture utilizes at its core the SM-OS operating system based over three major components:
Network Management Plane
- NETCONF/Yang in SDN deployment
- SNMP v1/v2c/v3, HTTPs, SSH, SFTP
- RADIUS for centralized user management
Data Plane
- MEF 2.0 – Carrier Ethernet Services
- IP/MPLS – L2/L3 VPN Services
- QoS/HQoS – queue management/policing and shaping
Synch Plane
- Synchronous Ethernet
- ITU-T G.8275.1 Profiles (T-BC)
- 1 PPS in/out port
Key Features:
- SM-OS based platform
- Up to 10 Gbps Throughput with a single unit
- Integrated XPIC circuitry (2+0 up to 20 Gbps)
- Channel bandwidth up to 2000 MHz
- BPSK/4/16/64/128/256 QAM modulation schemes
- Hitless Adaptive Coding Modulation and Bandwidth
- Integrated flat antenna (ETSI only)
- AES128/256 Encryption
- 10 Gigabit and Gigabit interfaces
- L1 link aggregation
- PoE and dedicated power feeder connectors
- Multi-Carrier Aggregation (Full Outdoor Aggregation with ALFOplus2; Split Mount with AGS20 ODUs)
- Network Management System: NMS5
- SDN Microwave Domain Controller: SM-DC
Have more questions about SIAE Millimeter-wave products or solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
