Airmux-5000 - Point-to-MultiPoint Broadband Wireless Access



The Airmux-5000 point-to-multipoint broadband wireless radios are the ideal wireless solution for business users demanding high capacity throughput with dedicated traffic bandwidth allocation and service level agreement (SLA) per subscriber.



Airmux 500 - point-to-multipoint broadband wireless radio

Optimal performance and high spectral efficiency in dense radio environments

Featuring up to 750 Mbps aggregated sector capacity and a range of up to 40 km (25 miles), a single Airmux-5000 base station supports up to 64 remote subscriber units (SUs) with multi-band operation, making it ideal for:

  • Service providers and ISPs, offering IP backhaul and 4G/broadband access for remote, rural and underserved communities
  • Private networks requiring high capacity inter-branch connectivity for university campuses, healthcare organizations, government institutions, large enterprises, and public establishments
  • Security and surveillance applications requiring aggregation and backhaul of traffic from multiple colocated HD cameras



Features:

  • Multi-band operation over 2.5 to 2.7 GHz, 3.3 to 3.8 GHz and 4.8 to 6.4 GHz in a single device
  • Supports fixed and nomadic applications
  • Airmux-5000i with a beamforming antenna
  • 5 MHz, 10 MHz, 20 MHz, or 40 MHz channel bandwidth
  • OFDM, MIMO, and antenna diversity capabilities
  • Range up to 40 km (25 miles)
  • Intra- and inter-site TDD synchronization using hub-site synchronization (HSS) and GPS
  • Low constant latency – typically 4 to 10 msec in full sector load



Product Series Max. Aggregate Throughput Band (GHz)
5000i HBS  Up to 750 Mbps 3.3–3.8, 3.65, 5.1–5.8
5000 HBS 25, 50, 100, 250 Mbps 2.4, 2.5–2.7, 3.3–3.8, 4.9–6.0
5000VS HBS 125** Mbps 5.1–5.8
5000 HSU 5*, 10*, 25*, 50* Mbps  2.4, 2.5–2.7, 3.3–3.8, 4.9–6.0

* Software upgradeable
** Up to 10 HSUs



Key Take-Aways:



  • High capacity up to 750 Mbps at the base station for best user experience
  • Multi-band - operation in a single device with a variety of channel bandwidth options
  • Guaranteed service level agreement (SLA) for demanding applications
  • Robust - air interface with unique interference mitigation and N-LOS operation
  • ROI - Greater spectrum efficiency for faster ROI
  • Superb - performance with interference immunity using beamforming technology



Solutions:



Distribution Automation and Smart Meter Backhaul

Secure networking for secondary substations, metering, and automation network integration.



Distribution Automation and Smart Meter Backhaul - Rad AIrmux

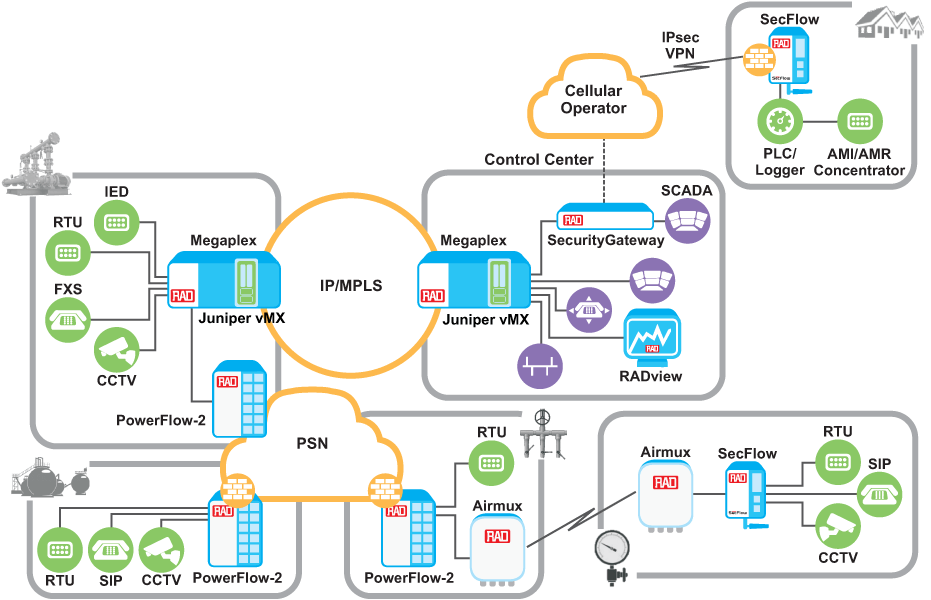

Water Utility Communications

Cyber-secure SCADA connectivity for water monitoring and automation devices, sensors, pumps, surface, and groundwater availability tracking devices, etc.



Water Utility Communications - Airmux-5000

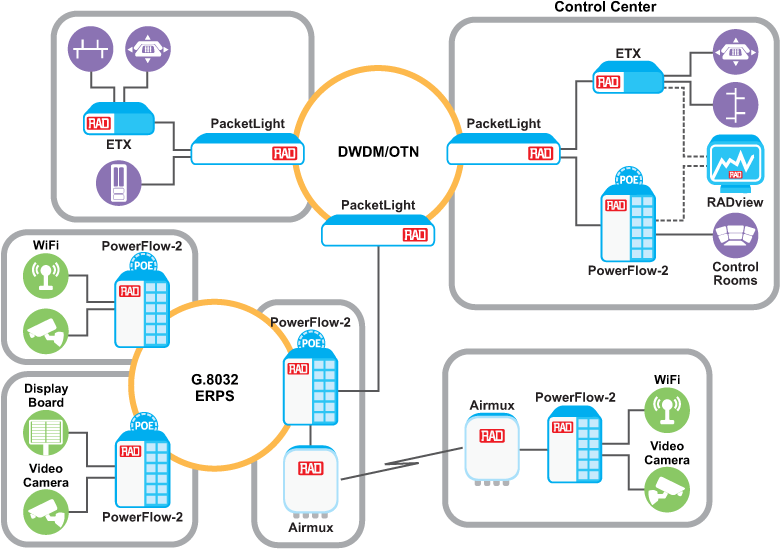

Smart City Communications

Connect security cameras, WiFI access points, display boards, meter concentrators, and other sensors in urban and rural areas fiber optics and wireless radios.



Smart City Communications - Airmux-5000

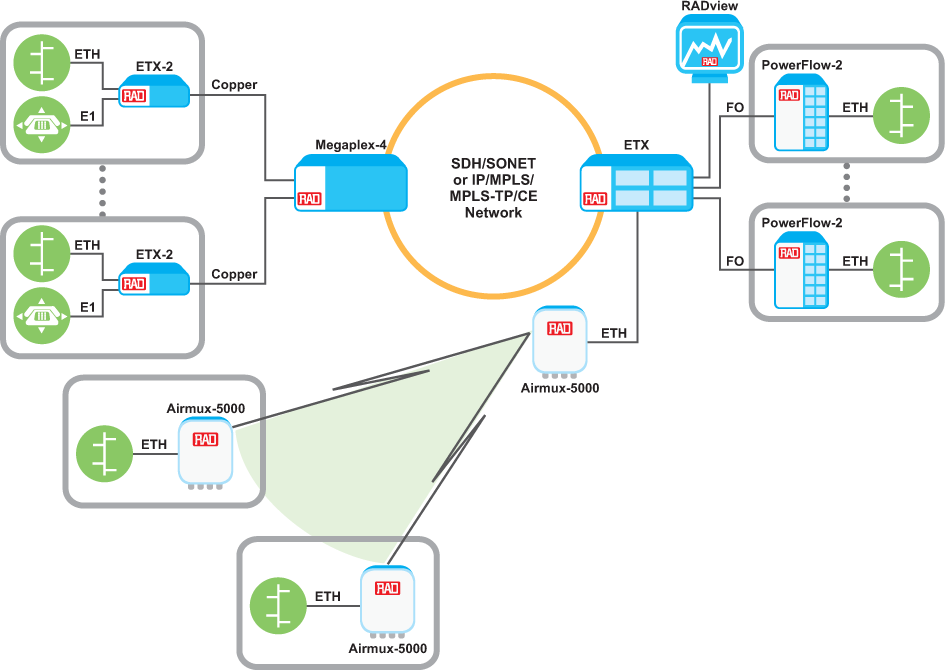

Multiservice Operational Network for Police and Military

Deliver Ethernet, TDM and low-speed data over existing SDH/SONET and/or PSN.



Multiservice Operational Network for Police and Military - Airmux-5000





Airmux-5000i is redefining Point-to-Multipoint Wireless





Have more questions about Airmux Broadband Wireless products or solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
