GTW-2200 - Voice Signaling Converter

SS7, SIGTRAN, SIP, ISDN PRI, CAS Signaling
T1, E1, DS3, OC3 and STM-1 PSTN Interfaces




GTW-2200 - TSG3200 - Voice Signaling Converter - Pulse Supply

This high-performance voice signaling converter allows conversion between SS7, SIGTRAN, SIP, ISDN PRI, and CAS Signaling. Housed in a low profile 1U rackmount chassis, the GTW-2200 supports up to (64) E1s, (3) DS3, or (1) OC3/STM-1.

Supporting multiple TDM interface types, the TSG3200 is the most cost-effective SS7/Signaling gateway solution for service providers that are currently available on the market.



Product Information



Supports flexible voice signaling conversions



The GTW-2200 is our workhorse Signaling gateway. Internationally recognized for its uncompromising reliability, high-capacity, and high-performance, the GTW-2200 is a 16 to 64 T1/E1 (or 1 to 3 DS3, or 1 OC3/STM-1) port Signaling gateway that offers the industry's highest density SS7 gateway in a single box (1U) solution.



Maintenance and Diagnostics



Multiple maintenance features enable quick and cost-effective resolution of network problems. Trace functionality is available to aid in troubleshooting configuration and network problems. Visual alarms allow for local monitoring. The graphical-based management system allows for programming and troubleshooting.

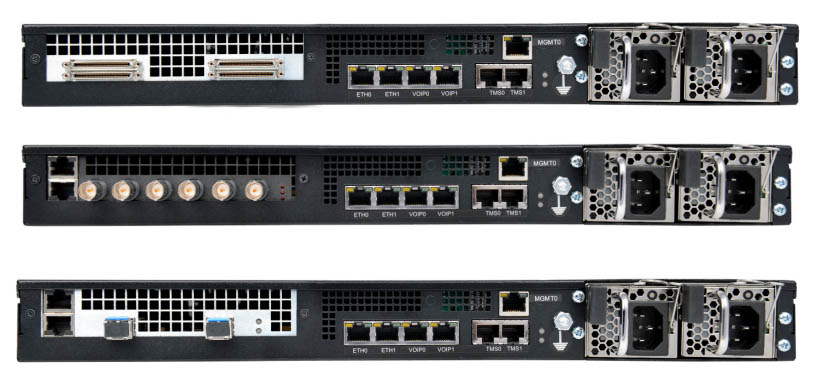

GTW-2200 - TSG3200 - rear - Voice Signaling Converter - Pulse Supply

Key Features



  • S1U SS7/SIGTRAN gateway
  • TDM interface (ordering option)
    16 to 64 T1/E1 or
    1 to 3 DS3 or
    1 OC3/STM-1 with APS
  • SIGTRAN, SS7
  • SCCP routing with Global Title Translation (GTT)
  • Supports conversion from ISDN and CAS protocols
  • Software upgradeable by T1/E1 increments
  • Hot-swap redundant power supply (AC or DC)
  • GTW-2000 1+1 solution option
  • Available in a smaller 8 port E1/T1 model



Protection Characteristics



  • Supports TDM interface types: T1/E1, DS3 or OC3/STM-1
  • Passive solution (no power required)
  • Enables full-facility protection (TDM and IP)
  • Active/Standby architecture with two TSG3200 units
  • No single point of failure
  • Five nine’s redundancy



Specifications



 GTW-2200  Data Sheet
