SP-4L - Smart Power Monitor




Smart Power Monitor and Outlet Control

The Smart Power Monitor SP-4L (4 ports) is a Remote Control Surveillance Management System that can power on, off or Reboot via the PSTN and Internet. The SP-8L supports an additional 4 ports and the SP-8H is a similar model but consists of a Master unit and up to (15) lower cost slave units with the ability to control up to 128 ports under a single management interface.

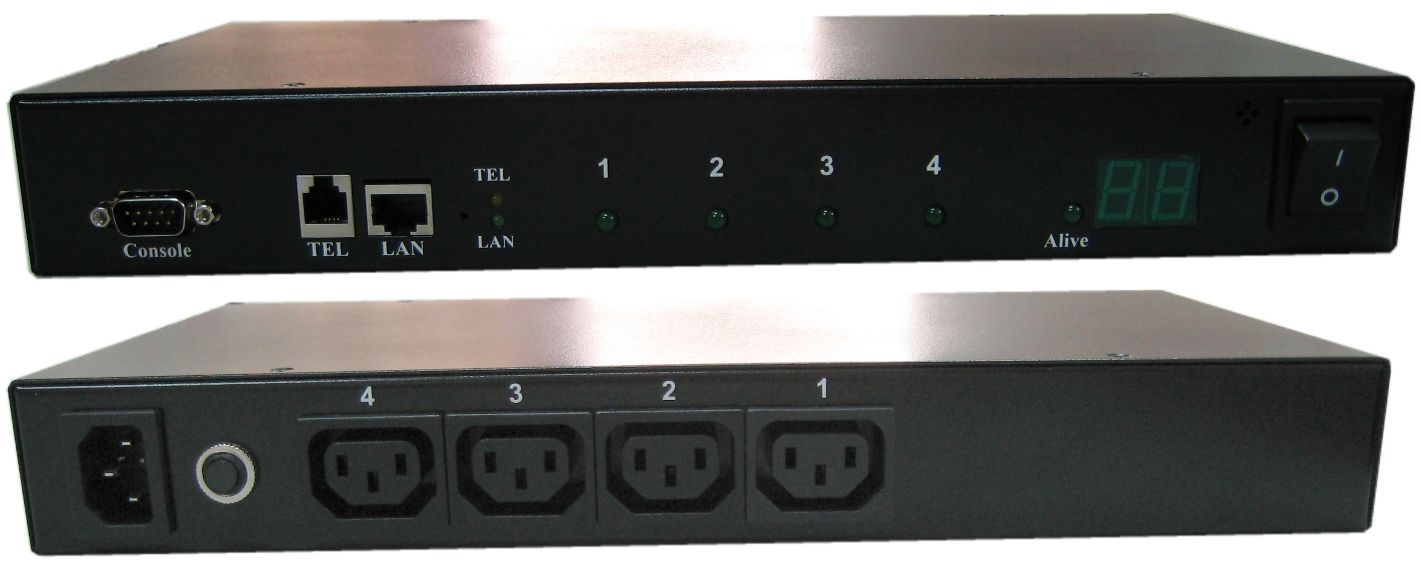

SP-4L  - Smart Power Monitor

Features:



  • Control Power Switching of Remote Equipment via IP network, Internet or PSTN
  • LED indicators and display to inspect current equipment ID, Main input Current, and individual device current draw
  • Detect whether two sets of power circuit are normal automatically
  • It is equipped with overloading electric breakers to protect attached devices from electrical damage
  • It can be attached to a temperature detector to control the power switch according to environmental change
  • Execute Power On/Off/Reboot via Console
  • Supports nearby Manual Power Switch.
  • Supports Power Start sequence setting to prevent all of the switches from starting simultaneously and cause a current overload
  • Provides 4 sets of accounts and passwords to manage multiple power switches
  • Automated power switch start time
  • Support Windows and Linux to execute the safety shut-down to avoid system damage
  • Support Wake on Ring function. ATX equipment can be started normally
  • Detect whether the power current of all ports is normal to avoid current overloading and damage the attached device.
  • Alerts and email warnings for real-time surveillance
  • Records the user's operating message and any abnormal message to provide follow-up records
  • Provide an API interface. The manager can develop control of the power switch by any external API
  • Each port can detect UPS low power signal to provide a safety shut-down for the attached equipment
  • IP and MAC address flitters to prevent an unauthorized user from accessing the power switch
  • The model SP-8H adds the ability to daisy-chain units for support of up to 128 ports

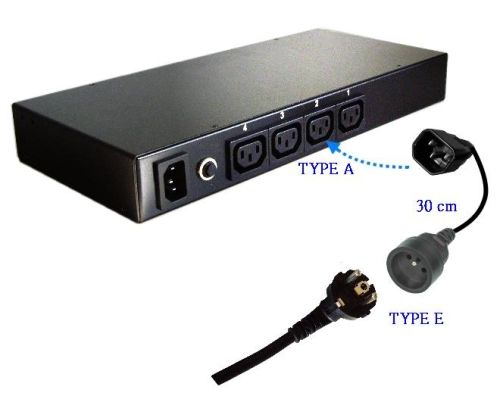

 International model connections:



SP-4L smart power monitor - European and rest of world



SP-4L smart power monitor rest of world model



USA and Mexico Model:



SP-4L smart power monitor USA and Mexico model





Network Drawing:



sp-4L smart power monitor application

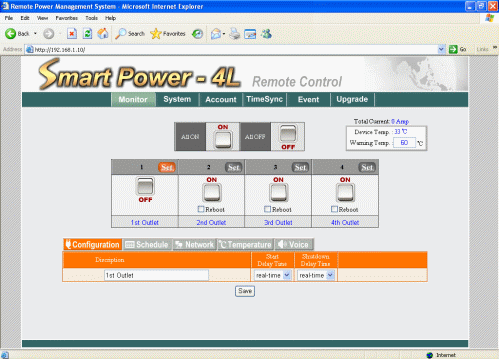

Web Interface:



SP-4L smart power monitor web GUI
