Luxriot Video Security and Surveillance Hardware

For your convenience, we have a range of hardware that you may find convenient for your security and video surveillance software installations

When choosing a server solution, hardware below can be also used as a reference for optimal specs when you choosing a server.

Luxriot Capture Boards 16, 32 Video/Audio Inputs H.264 Compression NTSC/PAL 30fps per channel D1 resolution 720x480 Windows 7 Compatible 64Bit and 32Bit Intel Chipsets w/ I7-860 or higher CPUs Stackable up to 64 Channels of Video and Audio TRYBRID with SDI HDCCTV Board 2.2MP at 30FPS/channel Luxriot Capture Boards Specification PDF, 367.40 Kb

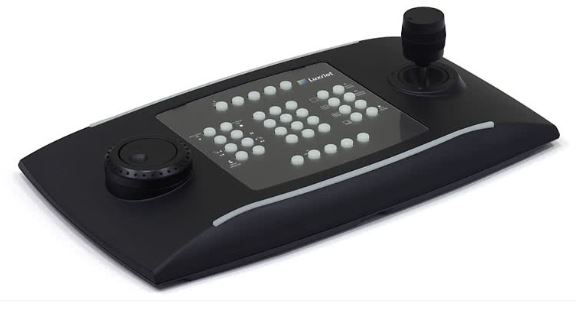

DCZ Universal keyboard USB keyboard for managing CCTV applications, with joystick and jog shuttle Perfect integration with Luxriot® EVO software USB powered Easy to install and use For right- and left-handed operators DCZ Universal Keyboard Specification PDF, 313.08 Kb

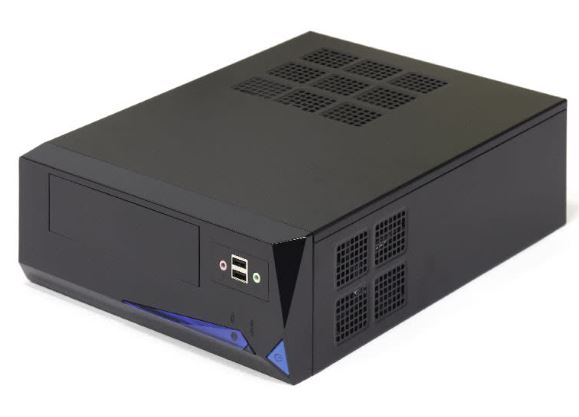

Mini Luxriot NVR Servers Ultra Quiet Mini NVR Luxriot Mini Server Series is a cost-effective solution, optimized and designed to work with Luxriot EVO S for smaller, stand-alone applications where space is limited. Dimensions (WxDxH): 100 x 338 x 260 (mm) / 10.2” x 13.3” x 3.9” i3-8100 & i5-8400 CPUs Windows 10 Pro (64Bit) 3TB, 4TB, 6TB and 8TB storage options available 16GB Memory 120GB SSD drive for OS Mini Luxriot NVR Servers Specification PDF, 212.22 Kb

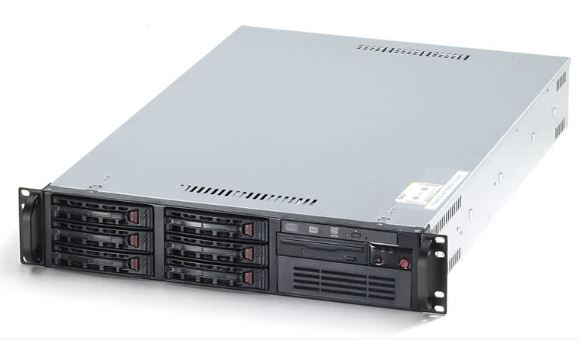

2U Rackmount Luxriot NVR Servers (Hi-End Server) 2U rack-mount chassis Intel Core i7-8700 Series Windows 10 Pro (64Bit) runs on a separate 120GB SSD 16GB DDR4 Memory From 9TB to 60TB storage 2 x Gigabit Network cards up to Unlimited Client Licenses 3-year hardware warranty 2U 4U Rackmount Luxriot NVR Servers Specification PDF, 252.38 Kb

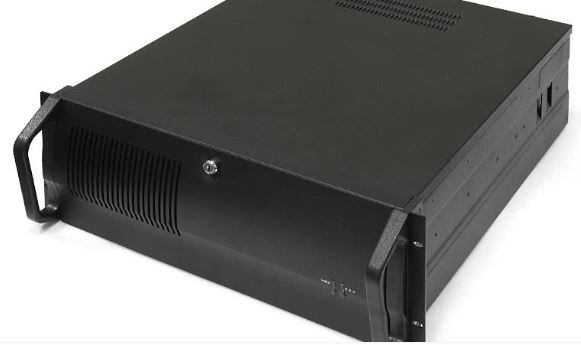

4U Rackmount Luxriot NVR Servers (Hi-End Server) 4U rack-mount chassis Intel Core i7-8700 Series Windows 10 Pro (64Bit) runs on a separate 120GB SSD 16GB DDR4 Memory From 9TB to 60TB storage 2 x Gigabit Network cards up to Unlimited Client Licenses 3-year hardware warranty 2U 4U Rackmount Luxriot NVR Servers Specification PDF, 252.38 Kb

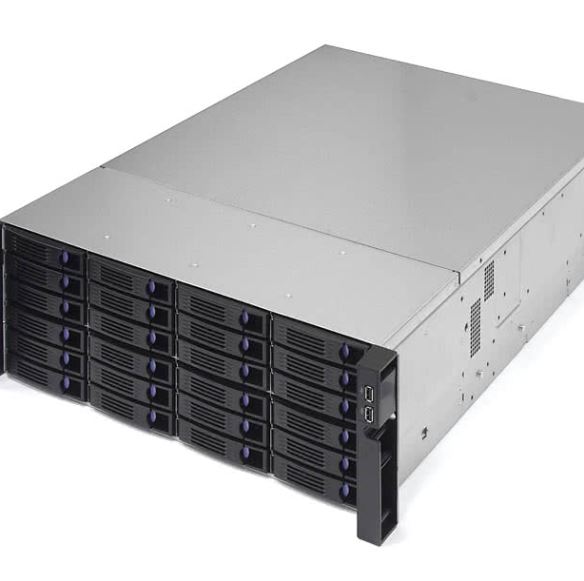

Luxriot RAID 6 NVR Servers (Single i7 CPU) COST-EFFECTIVE RAID 6 Server with Enterprise Capabilities 12Gbps Video Storage System i7-7820X (8 Core) Series CPU 16GB DDR4 Memory Hardware RAID 6 With HOT SPARE Includes NAND flash memory which offers Zero-Maintenance Cache Protection that eliminates Battery Backup Units (BBUs) Hot-swappable rear fans put maintenance and management at ease. INTEL SSD (SOLID STATE DRIVE) 240GB for OS and VMS Includes a Hot spare drive Network Video Recorder (NVR) Server for enterprise applications Windows 10 Pro (64Bit) From 20TB to 210TB internal storage or up to 630TB combined with our DAS units on a single server. Storage RAID 6 on Enterprise HDDs Included additional gigabit NIC (total 2 x NICs) Designed for robust high-performance computing Redundant Power Supplies Up to Unlimited client licenses 3-year hardware warranty Luxriot RAID 6 NVR Servers (Single i7 CPU) Specification PDF, 446.48 Kb

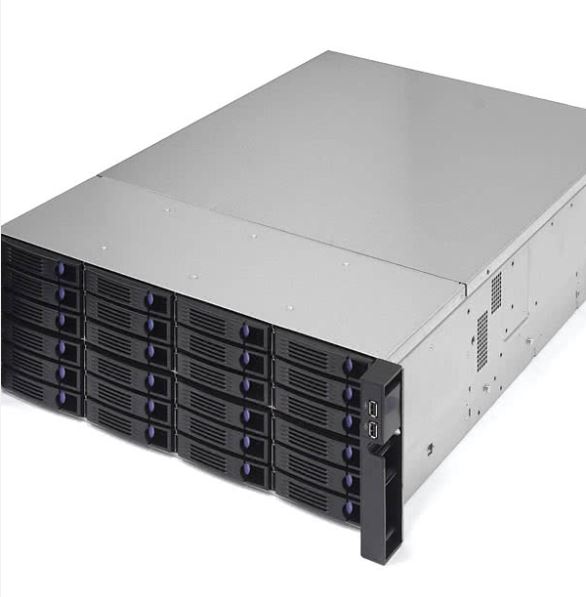

Luxriot RAID 6 NVR Servers (Enterprise Solutions) 2 x Intel Xeon Silver 4114 Deca-Core 2.20 GHz (20 Cores Total) 16GB Memory (upgradable to 128GB) Hardware RAID 6 with HOT SPARE included INTEL SSD (SOLID STATE DRIVE) SSD 240GB DRIVE for OS Includes 4GB of NAND flash memory which offers Zero-Maintenance Cache Protection that eliminates Battery Backup Units (BBUs) Hot-swappable rear fans put maintenance and management at ease. Network Video Recorder (NVR) Server for enterprise applications Windows 2012/2016 Server OS From 20TB to 210TB internal storage or up to 1680TB combine with our DAS units on a single server. Included additional gigabit NIC (total 3 x Gigabit NICs) Designed for robust high-performance computing Redundant Power Supplies Up to Unlimited client licenses Operating system & Luxriot® EVO server application on Intel 240GB SSD (or on RAID 1 SSD drives) 3-year hardware warranty Luxriot RAID 6 NVR Servers (Enterprise Solutions) Specification PDF, 385.43 Kb

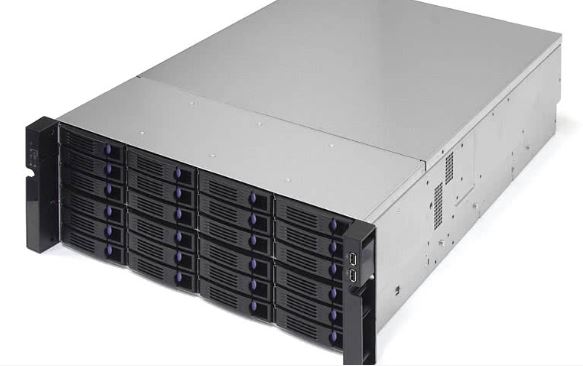

HD+ Storage Expansion DAS Can Expand storage with up to 210TB for almost any Luxriot HD NVR Server. RAID 6 WITH hot spare HOT SWAP Hard Drives. SAS Interface to connect to servers. Redundant power supply and hot-swappable rear fans put maintenance and management at ease. 12Gbps Video Storage System DAS HD+ Storage Expansion DAS Specification PDF, 248.49 Kb
