Dielectric Dry Loose Tube Cable - LA-LT-035
Loose Tube / Gel-Free / All-Dielectric
Single Jacket None Armored Optical Fiber Cable
The All Dry LA-LT-035 series is ideal for FTTH projects where cables are installed in a conduit or aerial-lashed. The LA-LT-035, Single Mode, 9/125, G.652.D is manufactured with GR-20 certified glass. Available in fiber counts from 12 to 576, the cable is sold in a reel of 14,000 to 20,000 feet.
The Polypropylene loose tube and the Medium Density Polyethylene jacket provide flexibility in handling yet solid protection of the core glasses from UV and other outside forces.
Standards and Certifications
ITU-T G.650, G.652.D. IEC 60793, 60794. RUS 7 CFR 1755. ISO 9001, 14001, OHSAS 18001. TIA-598-D. GR-20 (glass)
Construction

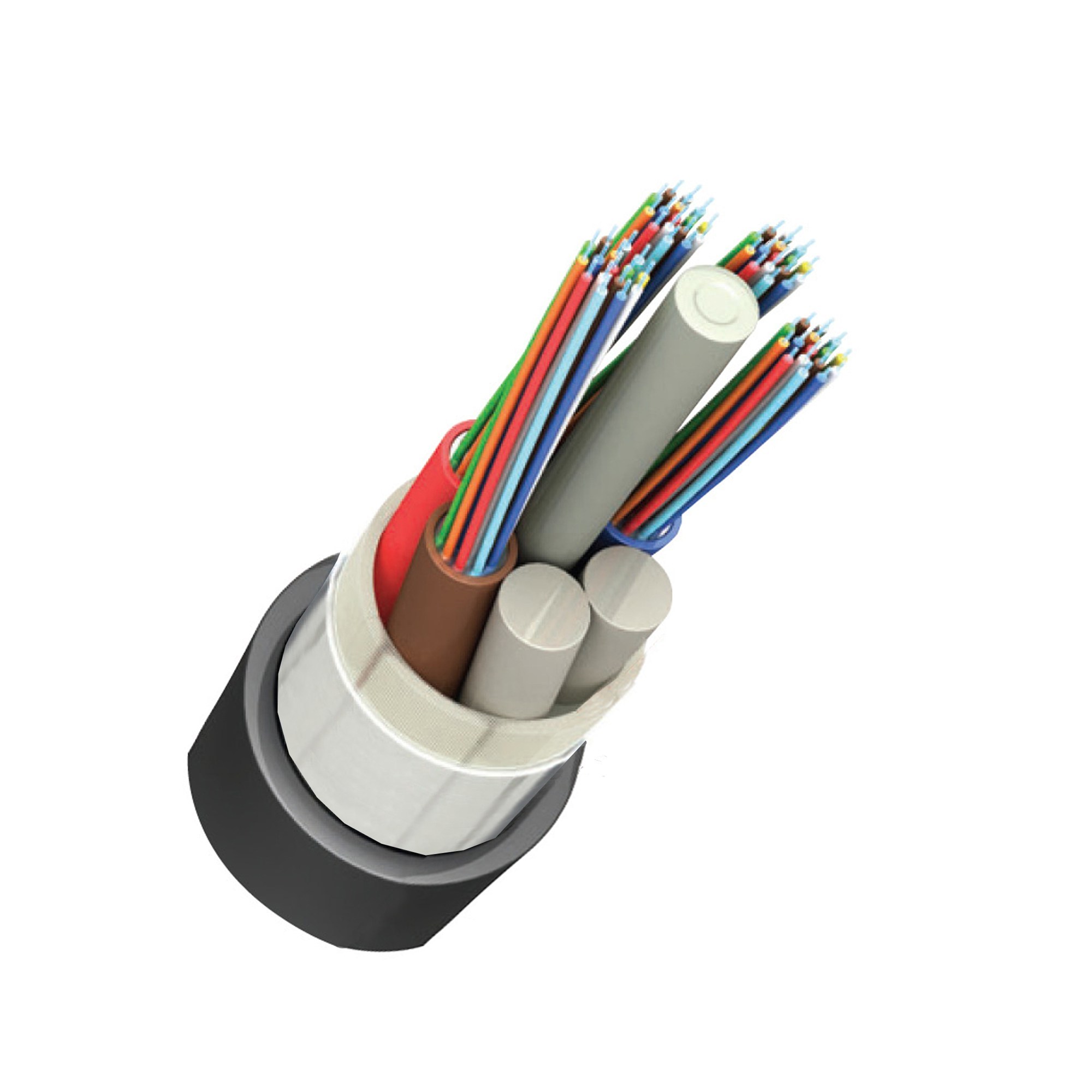

The cable core consists of color-coded fibers, dry water-swellable material, color-coded loose tubes, PE filler (if necessary), SZ-stranded around the FRP central strength member with water blocking yarn(s).
The cable structure is completed by the application of a core wrapping tape, auxiliary strength member if necessary, which with the core, are covered by an outer PE jacket.
Optical Characteristics
| Type of Fiber | G.652D | |
| Mode Field Diameter @1310nm | μm | 9.2 ± 0.4 |
| Mode Field Concentricity Error | μm | ≤ 0.8 |
| Cladding Diameter | μm | 125 ± 1.0 |
| Cladding Non-circularity | % | ≤ 1.0 |
| Transmission wavelength | nm | 1310, 1550 |
| Attenuation (Max. 288C) | dB/km | ≤ 0.35 @ 1310 nm ≤ 0.25 @ 1550 nm |
| Attenuation (Max. 576C) | dB/km | ≤ 0.40 @ 1310 nm ≤ 0.30 @ 1550 nm |
Dimension
| Fiber Count | Diameter (inch) | Weight (lbs/ft) | |
| ~ 72 | 0.421 (10.7mm) | 0.054 (80kg/km) | |
| 96 | 0.492 (12.5mm) | 0.074 (110kg/km) | |
| 120 | 0.551 (14.0mm) | 0.091 (135kg/km) | |
| 144 | 0.610 (15.5mm) | 0.114 (170kg/km) | |
| 216 | 0.630 (16.0mm) | 0.114 (170kg/km) | |
| 288 | 0.728 (18.5mm) | 0.144 (215kg/km) | |
| 432 | 0.768 (19.5mm) | 0.151 (225kg/km) | |
| 576 | 0.886 (22.5mm) | 0.202 (300kg/km) |
