All Dielectric Self Supporting Cable for Short Span - LA-ADSS-018




Loose Tube / Gel-Filled / All-Dielectric
Single Jacket None Armored Optical Fiber CableAll Dielectric Self Supporting Cable for Short Span Cable - Pulse Supply

The LA-ADSS-018 series for standard short-span has been engineered for standing America’s toughest weather conditions. The LA-ADSS-018 cable is ideal for the routes with 300 feet maximum span under NESC-Heavy condition or 600 feet under NESC-Light condition. Download the spec sheet to find more details on sag and tension information. The Polypropylene loose tube and the Medium Density Polyethylene jacket provide flexibility in handling yet solid protection of the core glasses from UV and other outside forces.



Standards and Certifications



ITU-T G.650, G.652.D. IEC 60793, 60794. RUS 7 CFR 1755. ISO 9001, 14001, OHSAS 18001. TIA-598-D. GR-20 (glass)



Construction

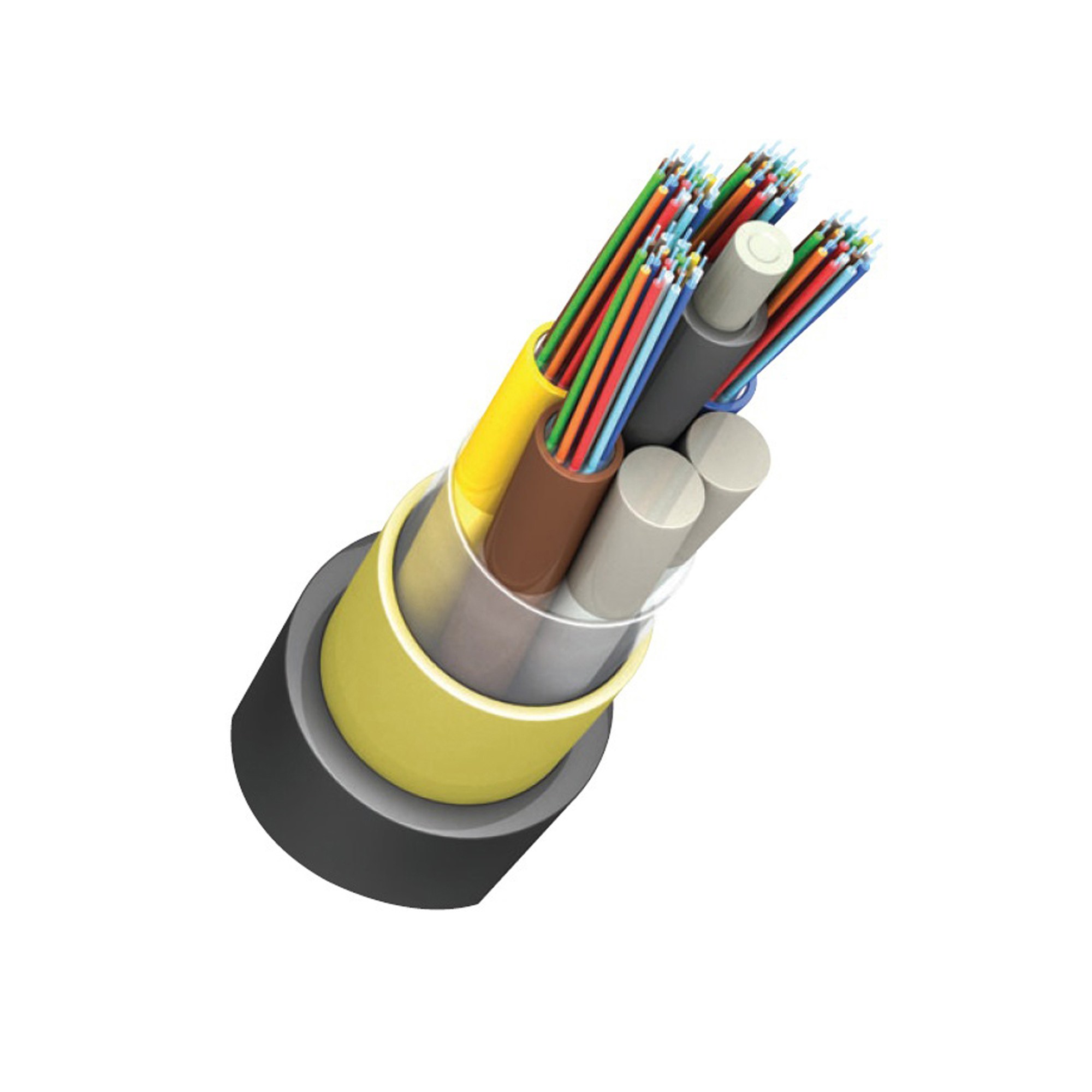

The cable core consists of color-coded fibers, Thixotropic jelly compound, dry water-swellable material, color-coded PP loose tubes, PE filler (if necessary), SZ-stranded around the FRP central strength member with water blocking yarn(s).

The cable structure is completed by the application of a core wrapping tape, auxiliary strength member if necessary, which with the core, are covered by an outer MDPE jacket.



Optical Characteristics



Type of Fiber   G.652D
Mode Field Diameter @1310nm μm 9.2 ± 0.4
Mode Field Concentricity Error μm ≤ 1.0
Cladding Diameter μm 125 ± 1.0
Cladding Non-circularity % ≤ 1.0
Transmission wavelength nm 1310, 1550
Attenuation (Max. 144C) dB/km ≤ 0.35 @ 1310 nm
≤ 0.25 @ 1550 nm



Dimension



Fiber Count Tube Count Diameter (inch) Weight (lbs/ft)
~ 72 6 0.436 (11.0mm) 57 (85kg/km)
96 8 0.491 (12.5mm) 77 (115kg/km)
144 12 0.633 (16.0mm) 121 (180kg/km)



Sag and Tension (~72 count)



Weather Condition NESC Light NESC Medium NESC Heavy
Max. Rated Cable Load (MRCL)  940lbs (426kgf)
Max. Span 656ft (200m) 500ft (152m) 300ft (91m)
Initial Sag 1.0% 1.0% 1.0%
Vertical Sag 0.7% 2.8% 3.8%
Horizontal Sag 3.5% 3.2% 2.8%
Tension 887lbs (402kgf) 921lbs (418kgf) 891lbs (404kgf)



Sag and Tension (96 count)



Weather Condition NESC Light NESC Medium NESC Heavy
Max. Rated Cable Load (MRCL)  1,090lbs (494kgf)
Max. Span 600ft (182m) 500ft (152m) 300ft (91m)
Initial Sag 0.7% 2.8% 3.5%
Vertical Sag 3.1% 2.7% 2.5%
Horizontal Sag 1,020lbs (462kgf) 1,085lbs (492kgf) 1,022lbs (463kgf)
Tension 600ft (182m) 500ft (152m) 300ft (91m)



Sag and Tension (144 count)



Weather Condition NESC Light NESC Medium NESC Heavy
Max. Rated Cable Load (MRCL) 1,280lbs (582kgf)
Max. Span 500ft (200m) 400ft (152.4m) 300ft (91.4m)
Initial Sag 0.8% 2.4% 3.3%
Vertical Sag 2.7% 2.2% 2.1%
Horizontal Sag 1,218lbs (552kgf) 1,180lbs (535kgf) 1,259lbs (571kgf)
Tension 500ft (200m) 400ft (152.4m) 300ft (91.4m)
